Celestron Labs MicroDirect 1080P HDMI Handheld Digital Microscope

SKU: 44316

Regular price $699.00 NZD
Regular price Sale price $699.00 NZD
Taxes included. Shipping calculated at checkout.
  • Fast NZ-Wide Shipping
  • In Stock In New Zealand
Quantity

Low stock: 2 left

Celestron's MicroDirect 1080P HDMI Handheld Digital Microscope is a compact magnifying tool that offers handheld and stand-mounted operating options. Using the included wide stand, you can adjust and secure a working distance and horizontal position above your sample.


The base also provides two clips to hold your slides or flat samples. With its high-resolution 3.5MP imaging sensor and an LED illumination ring, you can capture bright and crisp images and 30 fps videos. Optimized for 3D examinations, this kit also can be useful to study miniature artifacts by bumping up the magnification power to 220x on a 20" monitor. The device also provides options for streaming videos out via its mini-USB or mini-HDMI ports, saving your visual data to a 32GB microSD slot, and controlling shutter speeds manually or through your PC.



  • 3.5MP, 1/3" CMOS sensor
  • 10x - 220x magnification
  • Shutter can be controlled manually or from PC
  • Focusing range from 0 to 1.4"
  • LED ring illuminator
  • Streams 1080p videos via a mini-HDMI port at 30 fps
  • Captures 30 fps AVI videos: HD 720p, 640 x 480
  • Saves visual data to a PC or a built-in microSD card
  • Captures interpolated JPEG photos with resolution of up to 14.0 MP or 5120 x 2880
  • Mini-HDMI video out port for direct streaming to HDTV displays
  • Mini-USB port allows connectivity to your PC
  • Handheld or mounted operation
  • Pillar-type frame: stable base and two metal clips
  • Rod allows adjusting height (working distance) and horizontal position
  • Coarse-focusing adjustment with a knurled knob on the post
  • Fine-focusing wheel is built into the microscope body

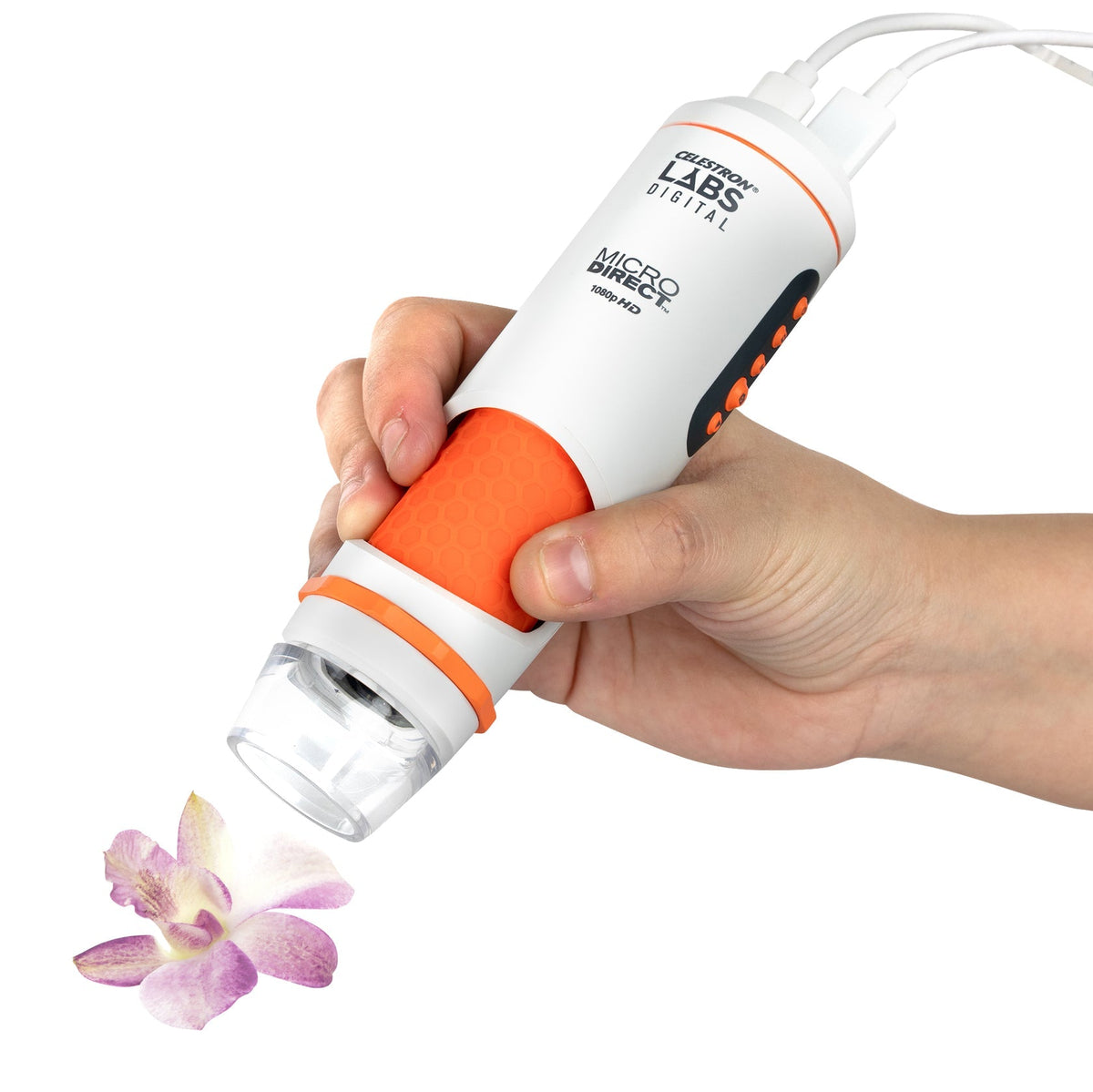

One hand use and easy focus

MicroDirect 1080p HDMI Handheld Digital Microscope can be operated with one hand and easily focused using the barrel focus wheel.

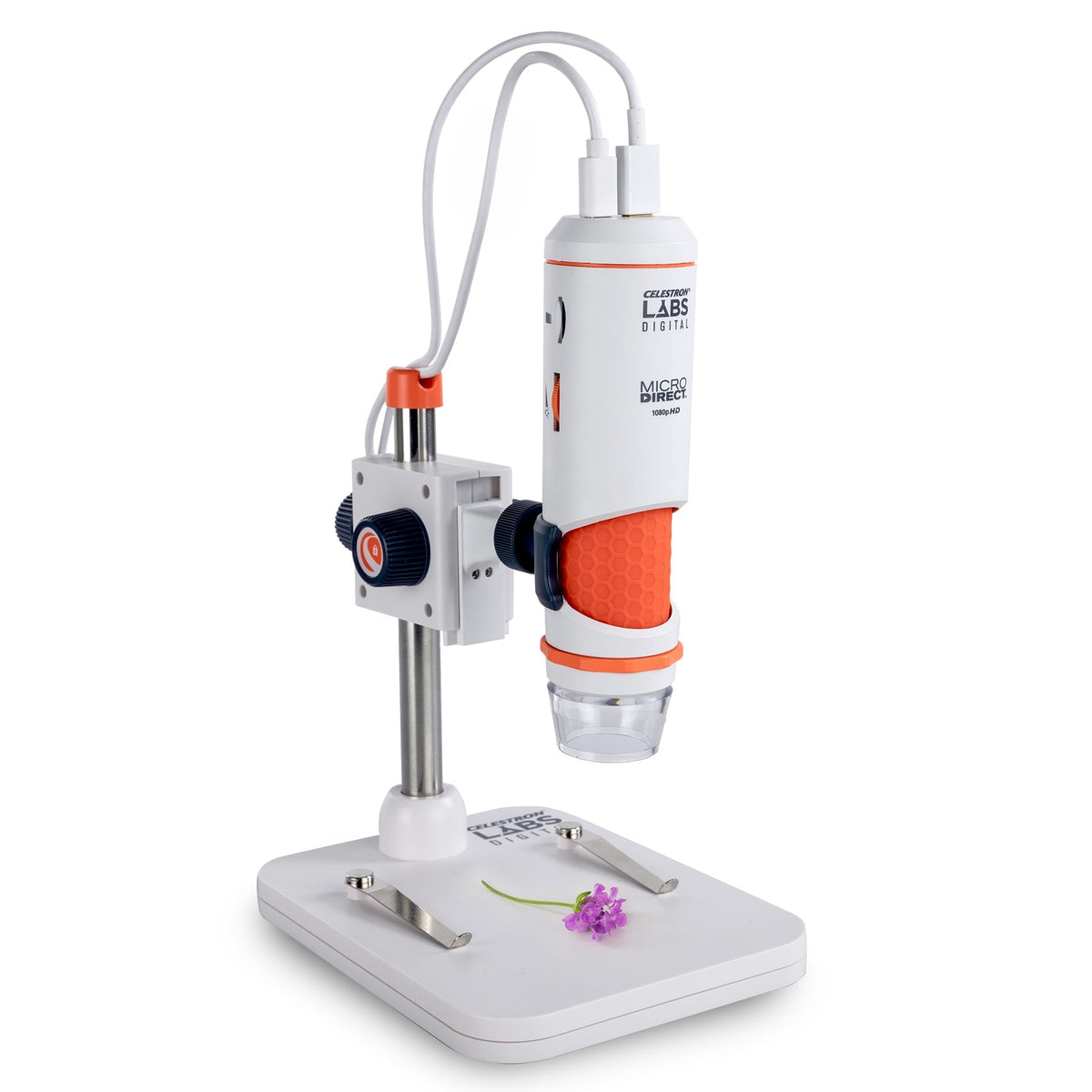

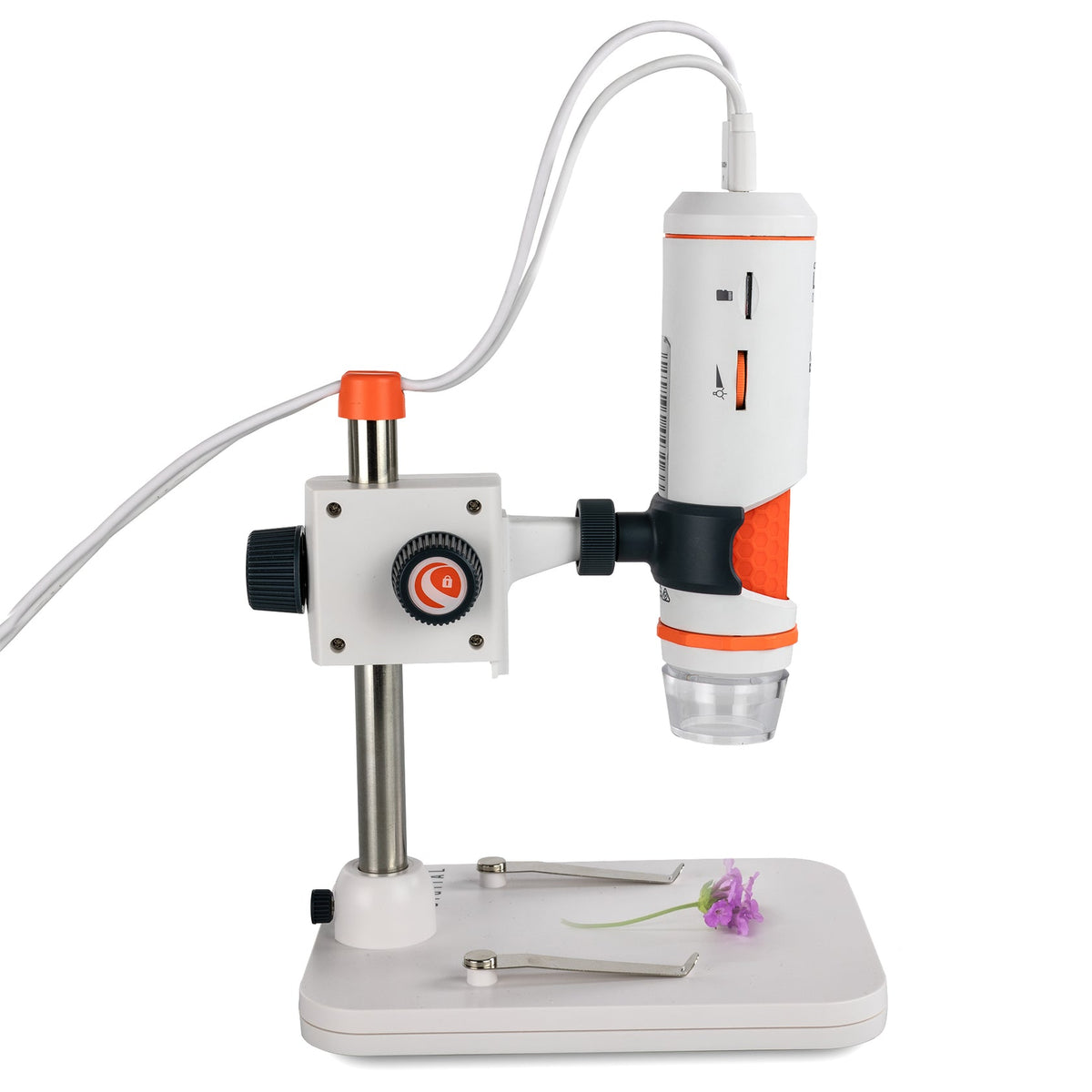

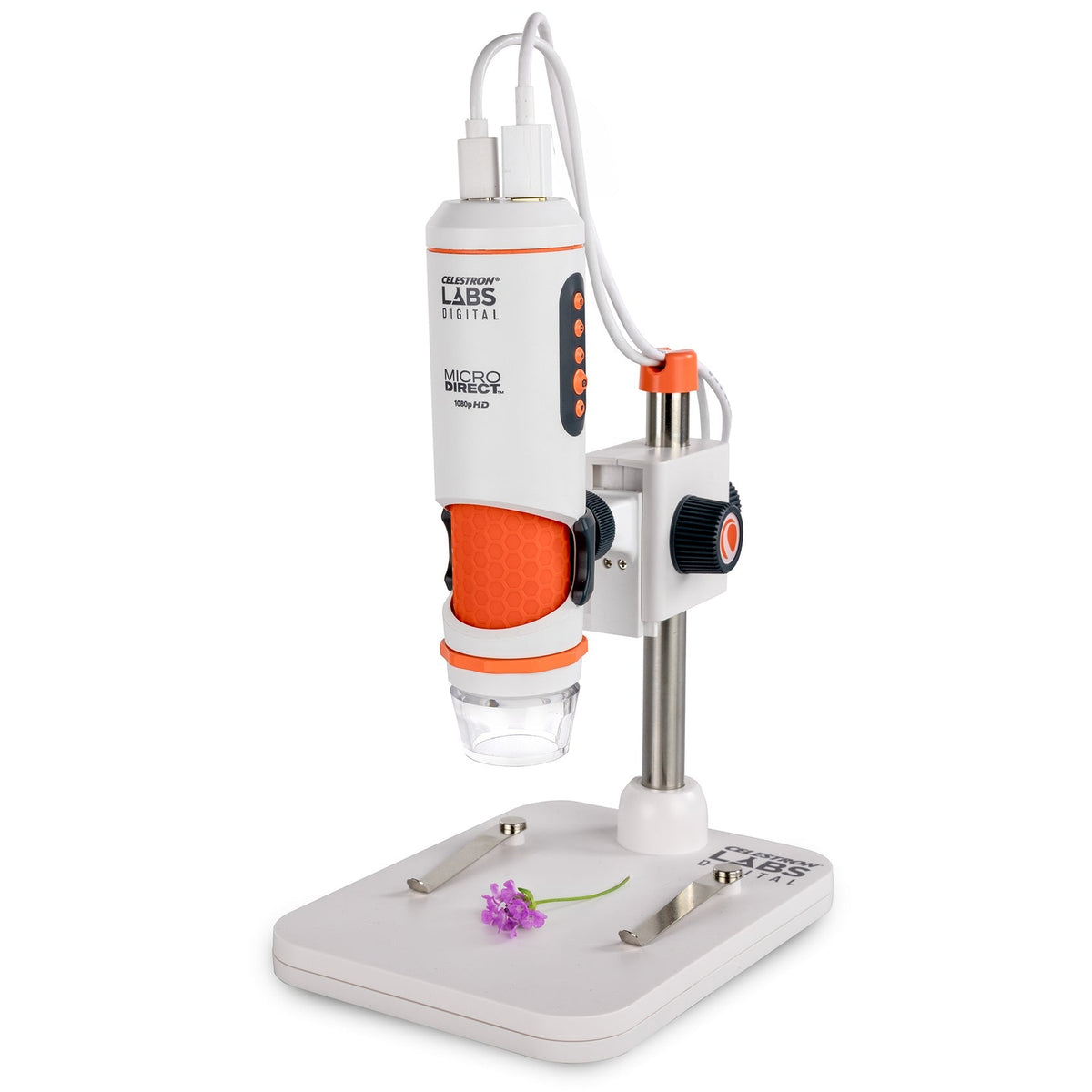

Adjustable stand included

A fully adjustable, weighted stand is included to ensure the clearest image taking and reducing shaking.

No computer needed

Simply plug the HDMI cable into the monitor or projector to power the microscope. The MicroDirect 1080p HDMI Handheld Digital Microscope will stream images in full 1080p HD.

Ships with software for using PC as an option

MicroDirect ships with HD software allowing users to record and save 720p videos and save still images directly to PC (Window OS only).

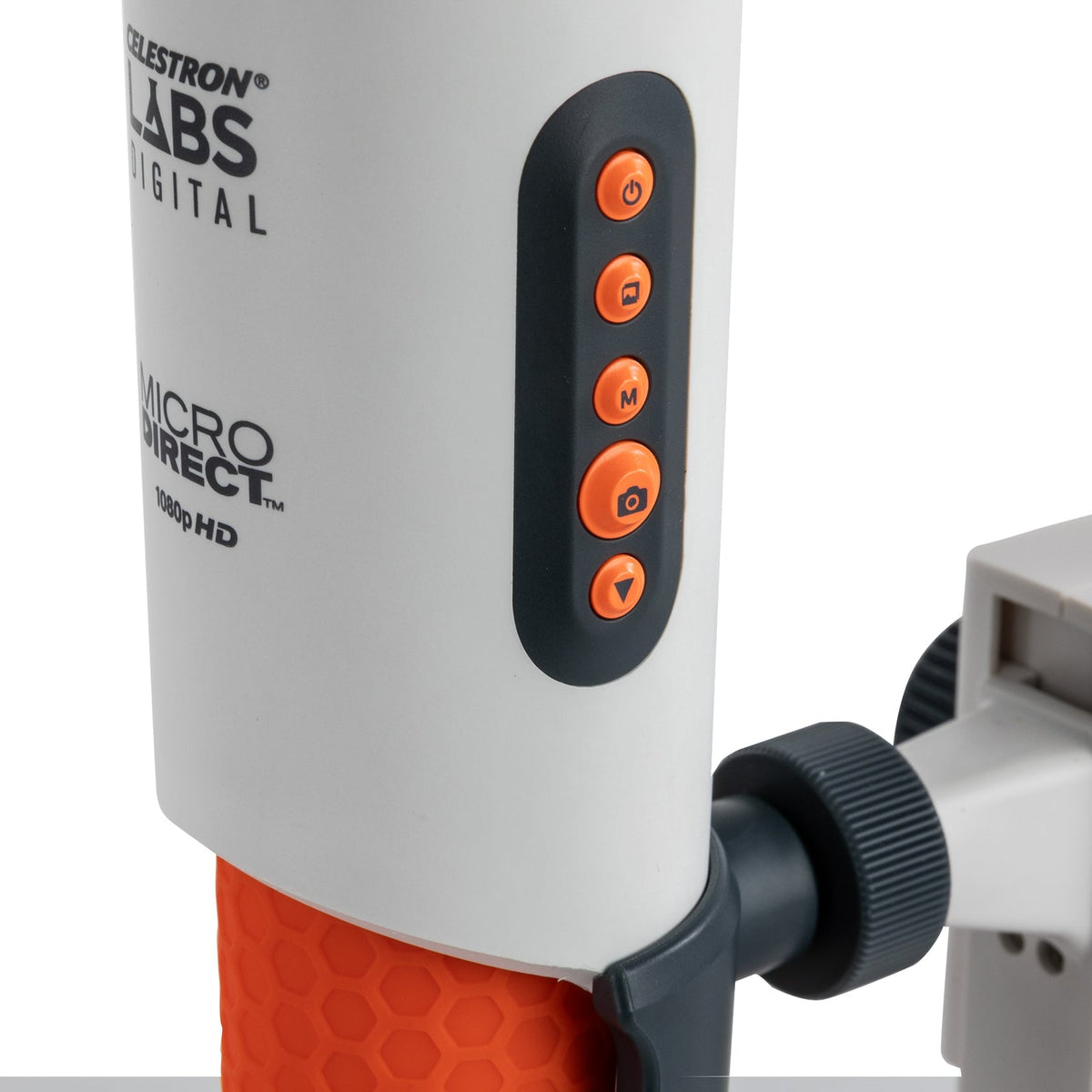

Press shutter to save image

Pressing the shutter button on the body of the microscope saves an image directly to your Micro SD card.



Great for classrooms

Amazingly clear crisp images streaming at 1080p HD allow for the whole room to see the incredible details.

Power the microscope 3 ways

.1)Power through the monitor or projectors USB port.



2)Power through a 120V outlet using your USB compatible plug.

3)Power using an external battery or powerbank, like Celestron’s Elements units.

Type of Microscope: Handheld Digital HD
Nosepiece: Clear plastic
Objective(s) Type: Single adjustable internal objective
Focus Type(s): Barrel focus: Course Focus | Fine Focus
Magnification Range: 10x to 220x
Illumination Type: Ring Illuminator- 8 LED-Adjustable
Illumination Position(s): Upper- At Nose
Illumination Adjustability Mechanism: Adjustment Wheel- On barrel
Power Source: 120V- USB 2.0 with micro USB Port at microscope (User supplied plug/adapter)
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Sensor Size: 3.5MP | 1/3"
Pixel Size: 2.3 μm
Screen type: Monitor (HDMI) | PC Screen (USB 2.0)
Screen Size: Connects via HDMI to any monitor or projector or connect to computer (using screen) via USB 2.0
Memory Type: Micro SD card slot (card not included)
Memory Size: Up to 32G

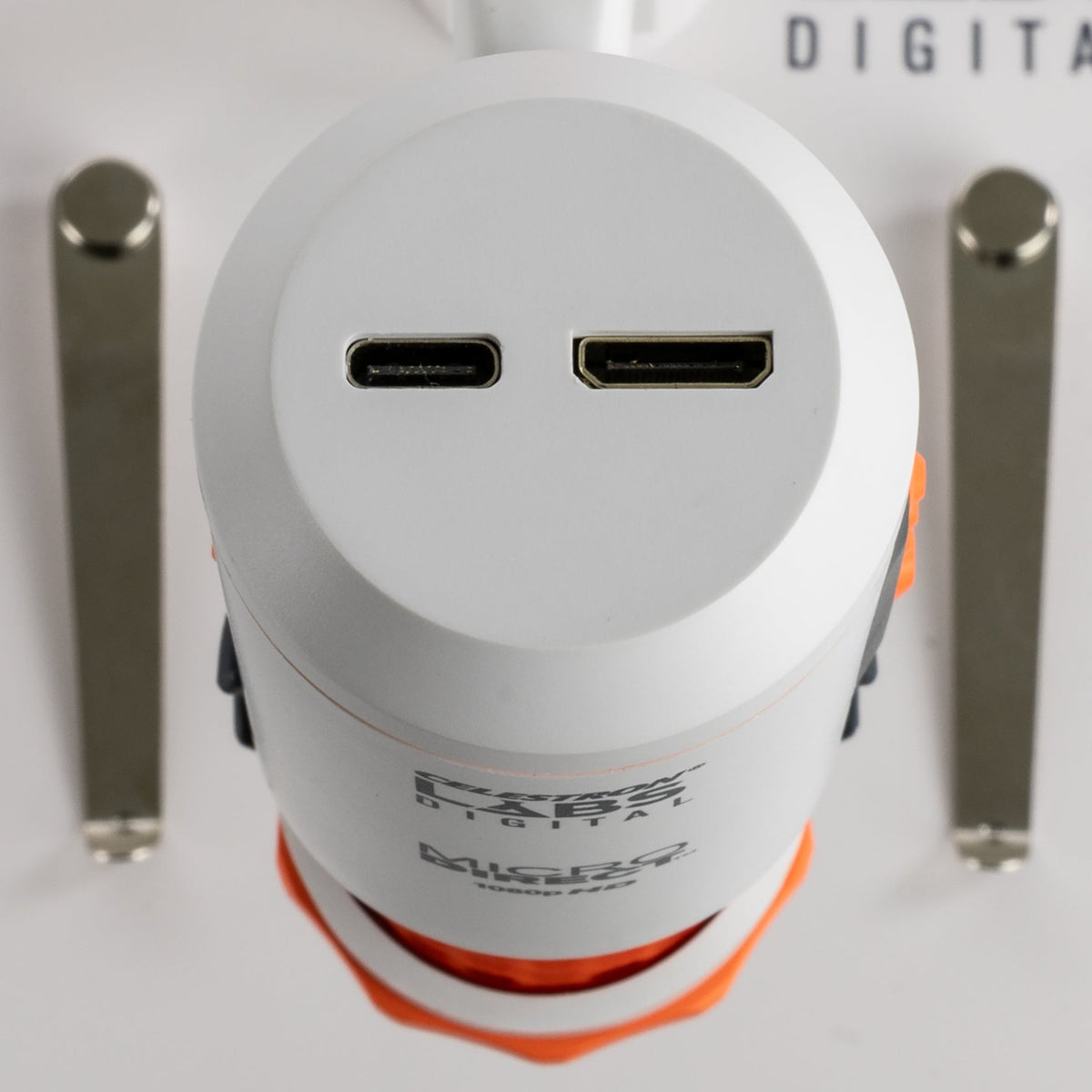

Port(s) In: Micro USB 2.0 (pwr)
Port(s) Out: Mini HDMI
Still image capture resolution: 5120x720 (Interpolated) | 3849x2169 (Interpolated) | 3072x1728 (Interpolated) | 2304x1296 | 1920x1080 | WVGA
Video resolution: Streaming (via HDMI):1080p (1920 x 1080) | Recording (USB 2.0) 1280 x 720 (720p) @30fps/ 848 x 480 @ 30 fps/ 640 x 480 (Max frame rate 30fps)
Shutter trigger position: On body
Shutter Speed: 1 sec. to 1/1000 sec.
Software: HDMI Direct connect: No Software needed | USB 2.0 PC connect: Celestron Portable Capture Pro HD
Software compatibility: Windows: 7.1/10/11 | Mac: Not Compatible
Microscope Dimensions: Microscope: 155.6mm x 38mm x 38mm (6.125" x 1.5" x 1.5") | Stand: 119mm x 171.4mm x 482.6mm ( 4.68" x 6.75" x 6.19")
Microscope Weight: 1.3 lbs (590g) (including stand)

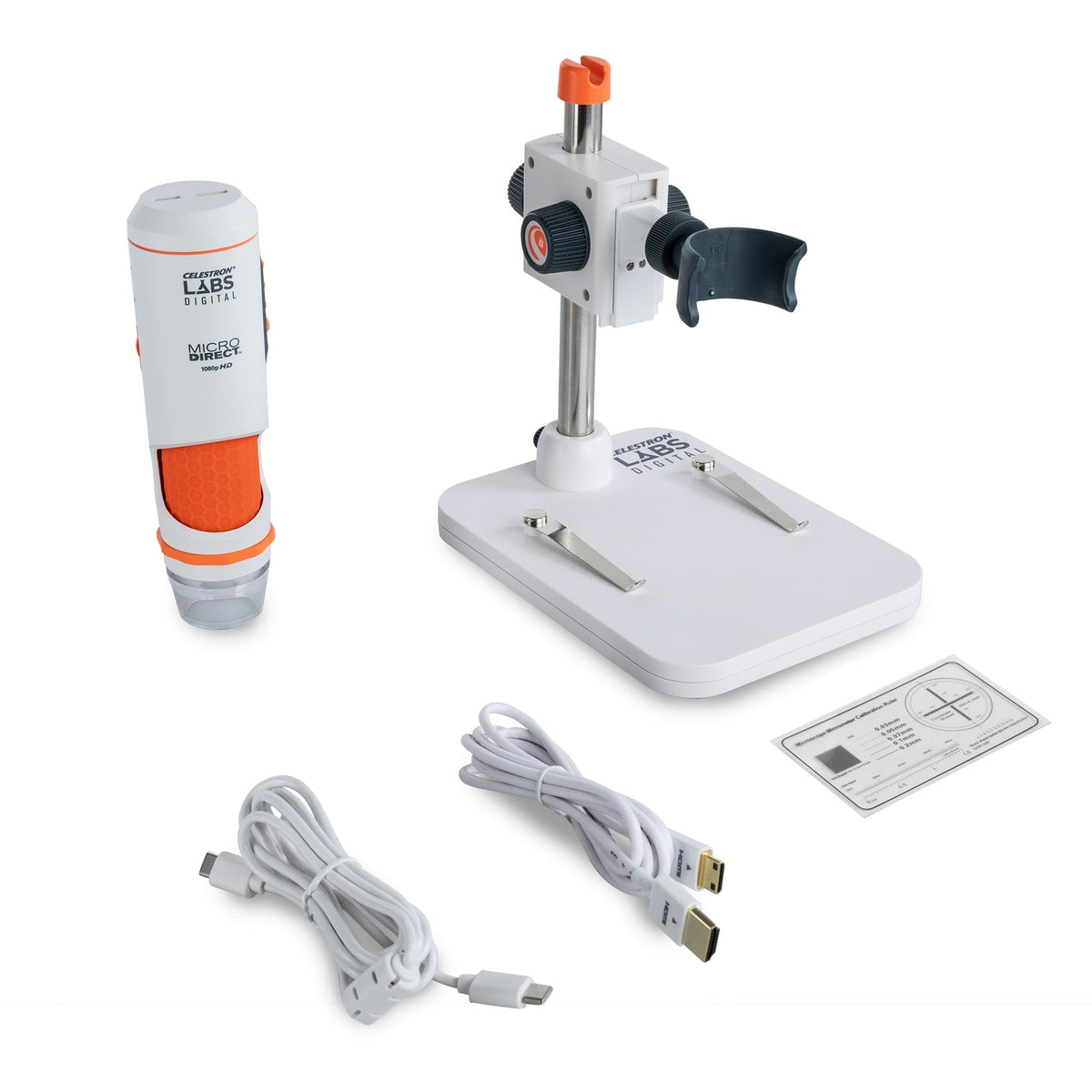

Included Items: Adjustable Stand | USB 2.0 cable | Calibration ruler | HDMI cable | Lens cloth | Quick Setup Guide
