Jacobs Digital

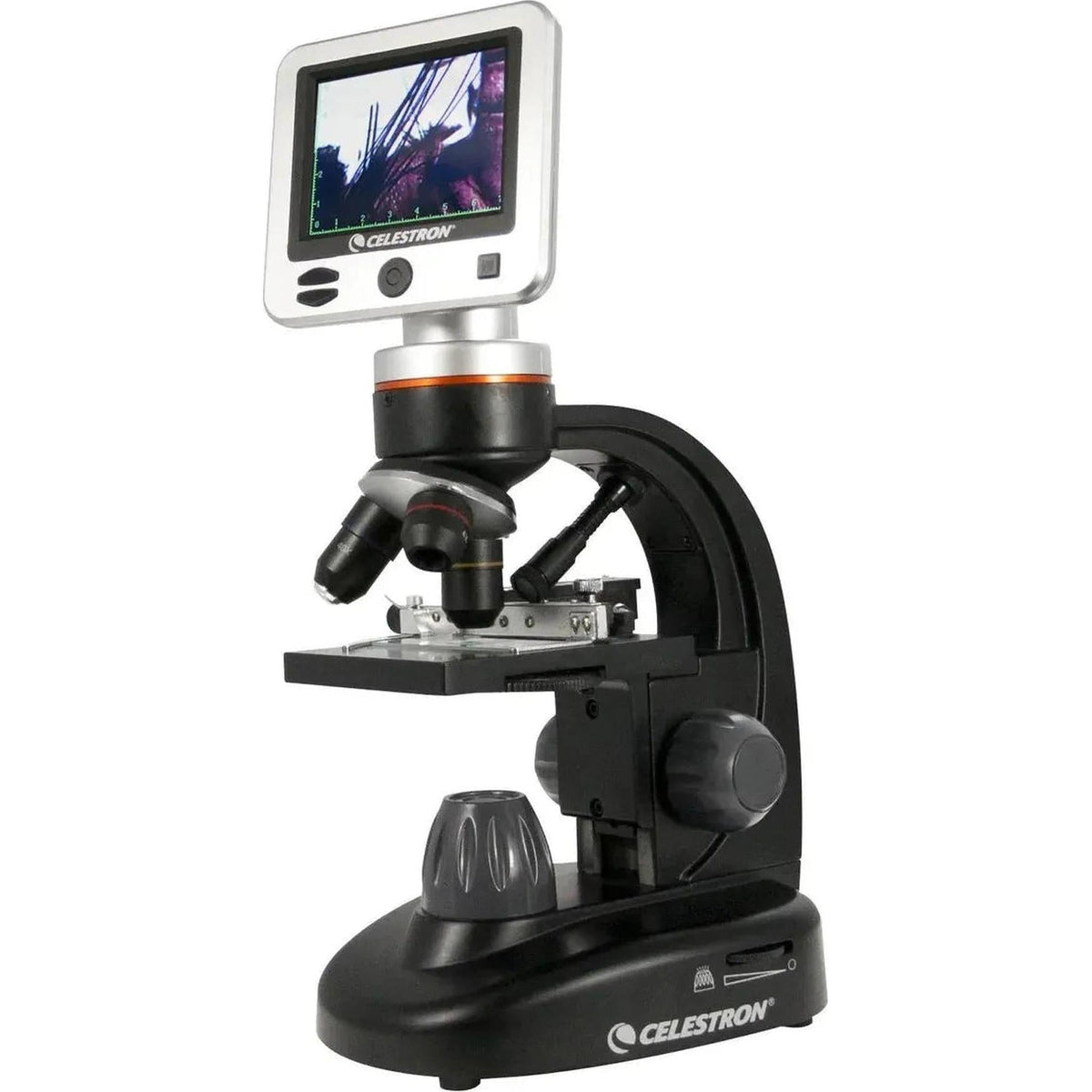

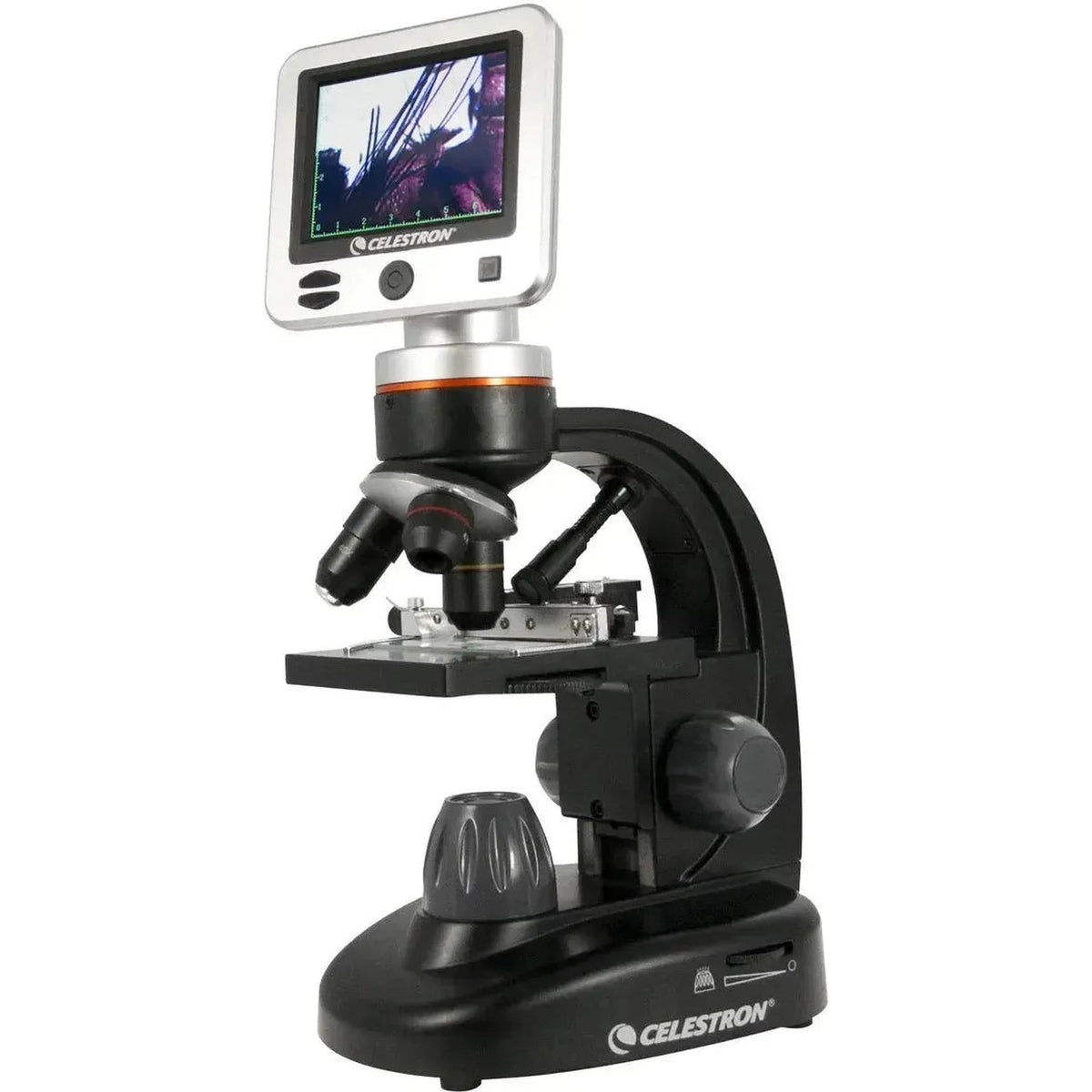

Celestron LCD Digital II Microscope

SKU: 44341

Regular price $874.99 NZD
Regular price Sale price $874.99 NZD
Taxes included. Shipping calculated at checkout.
  • Fast NZ-Wide Shipping
  • In Stock In New Zealand
Quantity

In stock

OVERVIEW:

  • Professional digital biological microscope
  • Full color 3.5" TFT LCD screen with onboard software
  • Built-in 5MP digital camera captures high-resolution images and 30fps SD video of your specimen
  • Fully adjustable mechanical stage for easy slide movement
  • 180-degree rotating head for easy sharing of images

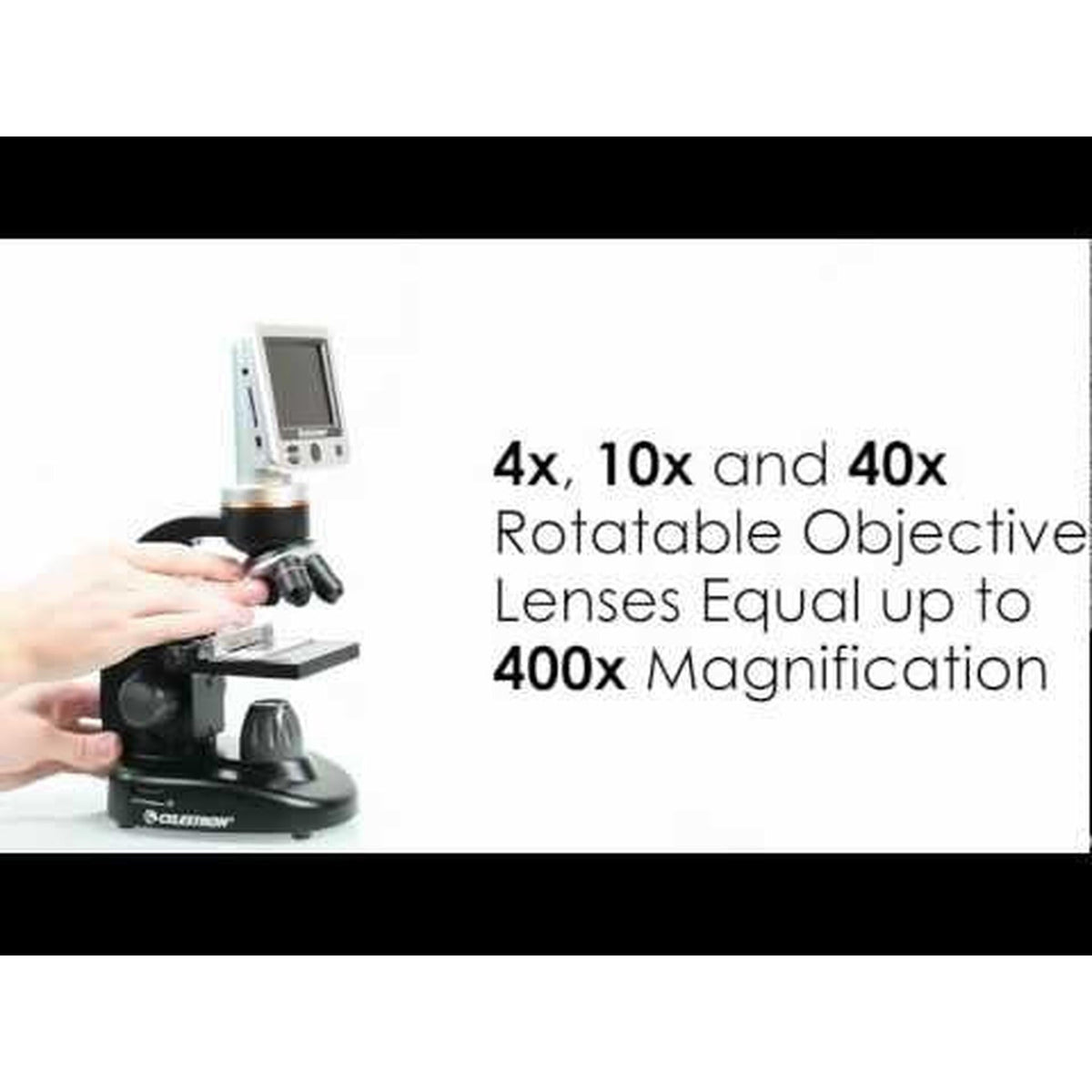

  • Rotating objective lens turret 3 lens powers: 4x, 10x, and 40x
  • Camera sensor acts as 10x eyepiece lens, yielding 40x, 100x, and 400x powers
  • 4x digital zoom for magnification up to 1600x
  • Measuring reticle for comparing specimen sizes
  • 1 GB SD card included so you can save up to 620 high-resolution images
  • TV output for display on large monitors for classroom or lab environment
  • Included accessories: 1 GB SD card, dust cover, rugged canvas carrying case with shoulder strap, 5 prepared slides, AV Output Cable, 4 plug international AC adapter

The LCD Digital Microscope II from Celestron combines a three-objective microscope with top/bottom LED illumination and a 5MP digital camera with colour touchscreen display. This instrument is well-suited for middle school and high school classrooms thanks to the rotating 3.5" display, video output, and broad zoom range. The included SD card enables observers to capture still images and record videos of their specimen, then transfer them to a computer or mobile device. Achromatic objectives equip the LCD Digital Microscope II with an optical system that transmits enhanced contrast and minimal image distortion. The objective turret features 4x, 10x, and 40x color-coded objectives capable of up to 160x, 400x, and 1600x magnification using digital zoom. This microscope also provides variable-intensity top and bottom illumination, both controlled by a base-mounted dimmer wheel. Complementing the bottom LED light source, a condenser lens and disc diaphragm with color filters provide several options for specimen illumination. To enable fine control of the specimen, the LCD Digital Microscope II is configured with a mechanical stage, making this optical-electrical instrument ready for the lab as well as the classroom.

Specifications:

General
Type of Microscope: LCD Desktop
Head: 180° rotatable head w/3.5" TFT LCD Screen
Nosepiece: Triple with click stop
Objective(s) Type: (3) Achromatic objectives on turret
Objective(s) Standard: DIN 35 RMS
Objective(s) Magnification: 4x, 10x, 40x
Objective(s) Thread: WJ 4/5" x 1/36"
Focus Type(s): Course Focus
Focus Travel (per rotation): 0.7mm to 35.3mm (.027" to 1.39") (est.)
Magnification Range: 40x, 100x, 400x | Up to 1600x with digtial zoom
Illumination Type: LEDs
Illumination Position(s): TBD
Illumination Adjustability Mechanism: Adjustable wheels at base
Power Source: Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional)
Battery Options: Yes (4AA)
Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures
Condenser Type: Aplantic
Condenser N.A.: N.A. 65
Stage Diaphragm: Multiple on wheel
Eyepiece Type: CMOS Sensor in lieu of eyepiece
Sensor Size: 5MP | 1/2.5"
Pixel Size: 2.2 μm
Screen type: High Definition TFT LCD Screen | 480 x 272 pixels | 262K colors | Brightnes 400cd/m2
Screen Size: 3.5"
Memory Type: SD Card
Memory Size: 2G SD included | Supports up to 32G
Port(s) In: AC Plug (power) | SD Card slot (32Gmax)
Port(s) Out: Video/ TV out | USB 2.0
AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Still image capture resolution: 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480
Video resolution: VGA (640 x 480)
Shutter trigger position: On LCD Screen
Software: Internal Firmware built in
Microscope Dimensions: 170mm x 140mm x 330mm (6.7" x 5.5" x 13")
Microscope Weight: 56 oz (1600g)
Included Items: 2GB SD Card | USB 2.0 Cable (data transfer) | 5 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | Carrying Case
View full details
