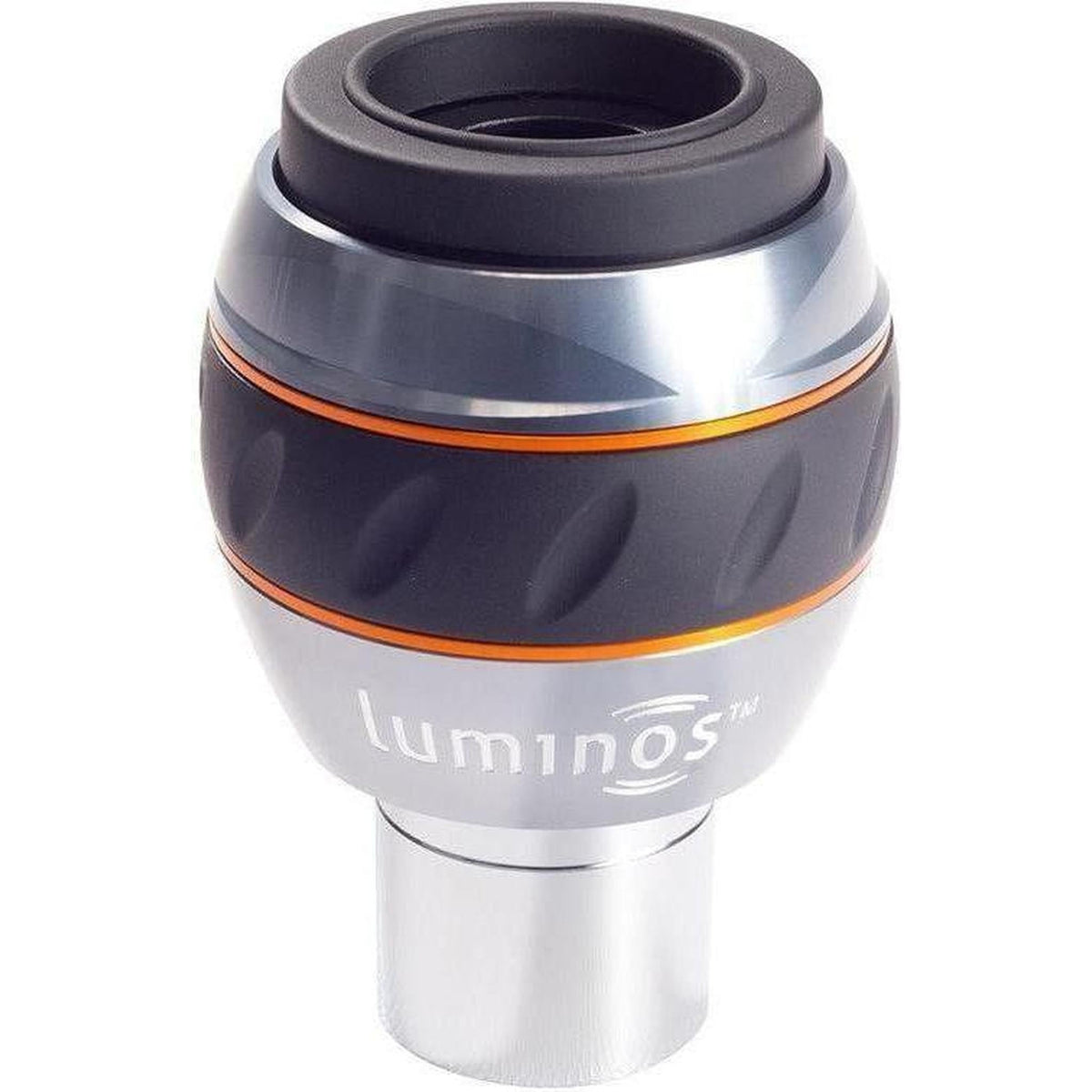

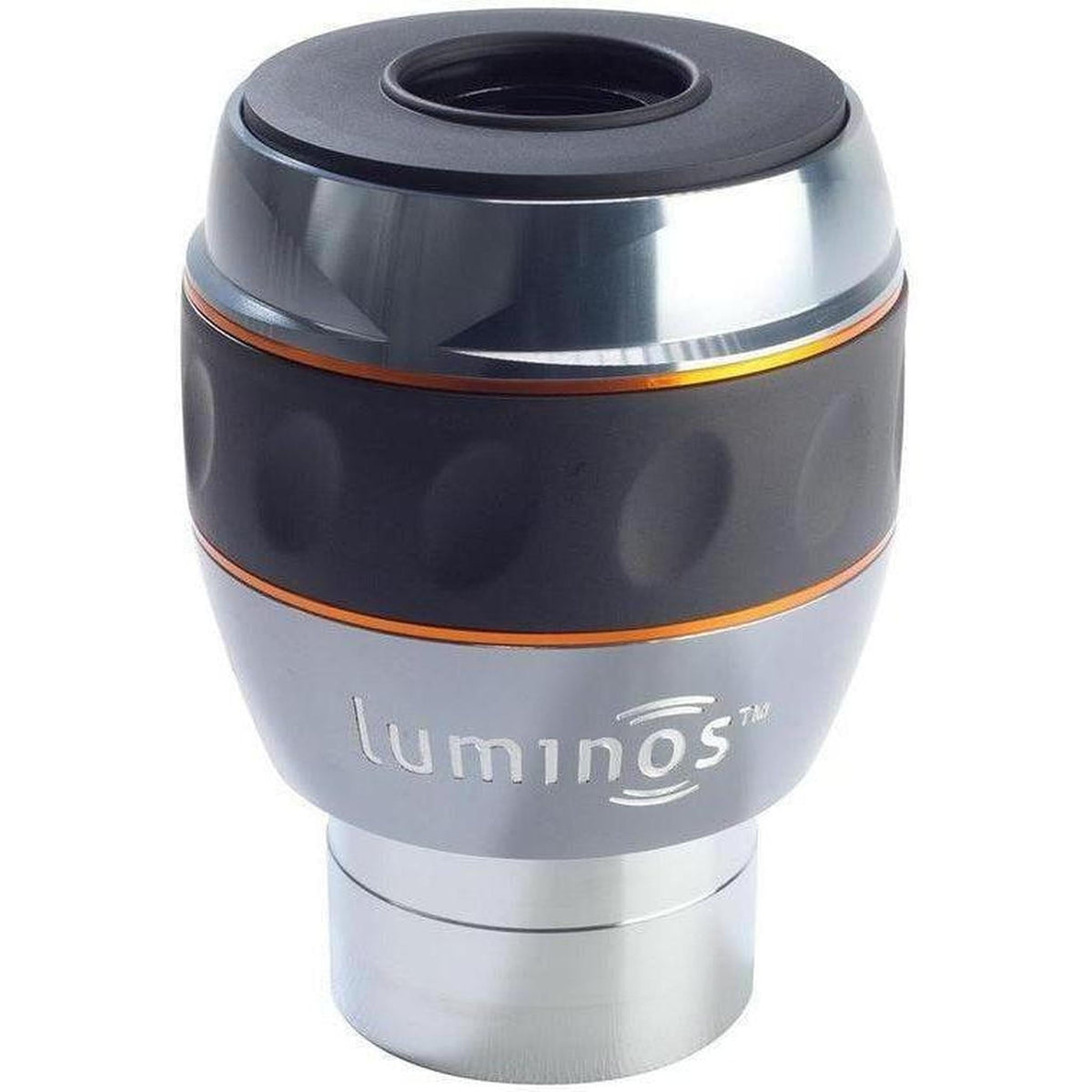

Celestron Luminos Eyepieces - All Sizes

SKU: 93430

$399.99 NZD

Taxes included. Shipping calculated at checkout.

Fast NZ-Wide Shipping
In Stock In New Zealand

Size 7mm 10mm 15mm 19mm 23mm 31mm

Low stock: 1 left

Celestron Luminos · Ultra-wide eyepieces

A wider way into the night.

An 82° apparent field changes the feel of observing: less like looking down a tube, more like leaning into the sky. Choose from six parfocal focal lengths spanning high-power planetary detail to expansive deep-sky sweeps.

82° Ultra-wide apparent field

6 Focal lengths from 7–31mm

2 Barrel formats: 1.25″ and 2″

Parfocal Little or no focus change between models

The immersive difference

See the scene, not the edge.

Apparent field of view describes how wide the circular window feels to your eye. At the same magnification, the Luminos 82° window spans roughly 64% more angular width than a 50° eyepiece.

That extra room is useful as well as dramatic. A target can stay visible longer in a manually tracked telescope, surrounding star fields provide context, and large clusters or nebulae feel less confined.

1.64×the apparent angular diameter of a 50° view
≈2.7×the illustrative viewing-disc area at equal scale
82°shared by every focal length in the family
Edge contextespecially helpful for manual nudging and finding

Scale comparison is illustrative. It compares apparent field geometry, not image brightness or telescope performance.

The complete family

Six focal lengths. Six different jobs.

Shorter focal lengths produce more magnification; longer focal lengths show a broader true field. The most useful choice depends on your telescope’s focal length, aperture, focuser size and the targets you enjoy.

1.25″ models · 7, 10 and 15mm 2″ models · 19, 23 and 31mm

1.25″ barrel Celestron Luminos 7mm 1.25-inch ultra-wide telescope eyepiece

7mm

High power

For lunar detail, planets and close double stars when the atmosphere and telescope support high magnification.

Eye relief: 12mm
Field stop: 15mm
Weight: 306g

1.25″ barrel Celestron Luminos 10mm 1.25-inch ultra-wide telescope eyepiece

10mm

High–medium

A strong planetary and lunar option that also brings globular clusters and compact deep-sky objects closer.

Eye relief: 12mm
Field stop: 17mm
Weight: 329g

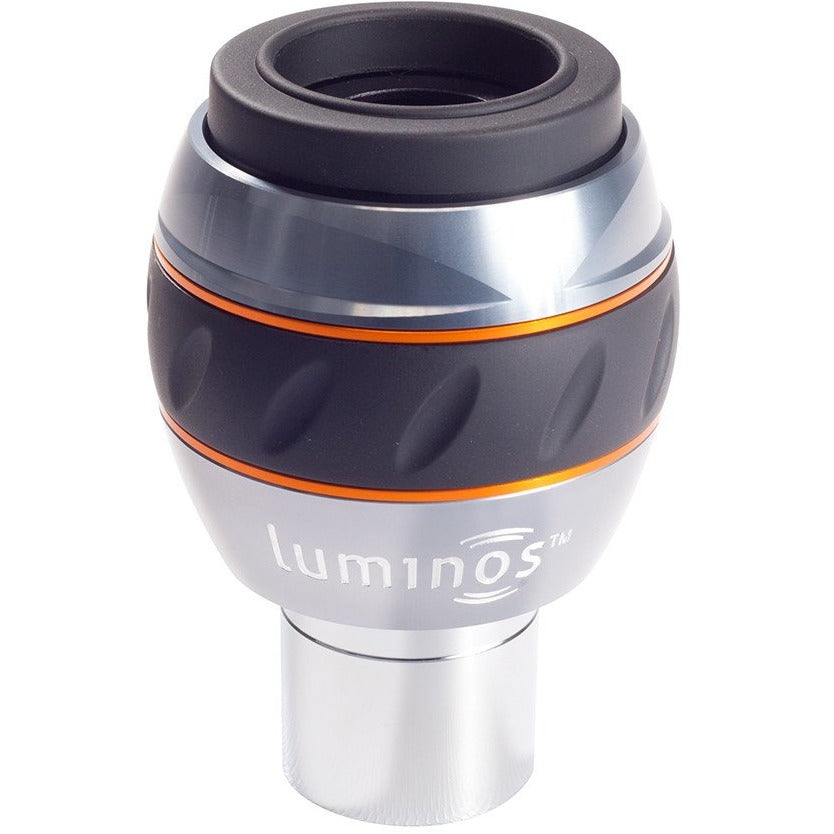

1.25″ barrel Celestron Luminos 15mm 1.25-inch ultra-wide telescope eyepiece

15mm

Versatile mid power

A flexible bridge between detail and context—well suited to the Moon, clusters, galaxies and smaller nebulae.

Eye relief: 17mm
Field stop: 26mm
Weight: 366g

2″ barrel

19mm

Medium–low

A 2″ generalist for deep-sky detail, framed lunar views, rich star fields and medium-size open clusters.

Eye relief: 20mm
Field stop: 30mm
Weight: 500g

2″ barrel

23mm

Wide field

For larger clusters, sweeping along the Milky Way, broad nebulae and an easy low-power route into a target.

Eye relief: 20mm
Field stop: 37mm
Weight: 800.5g

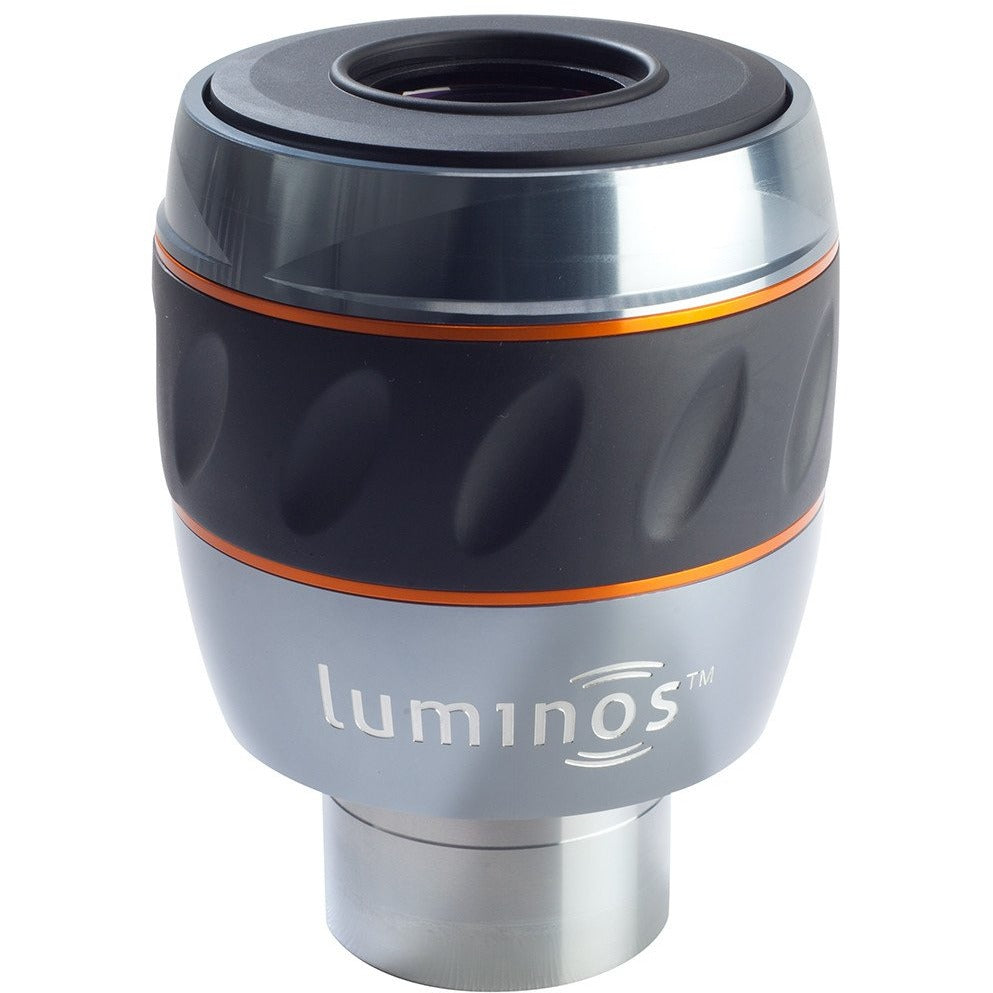

2″ barrel

31mm

Widest Luminos sweep

The broadest true field in the family for extended nebulae, very large clusters and immersive star-field cruising.

Eye relief: 27mm
Field stop: 47mm
Weight: 1186g

A practical starting map

Match the focal length to the night.

These are observing roles, not rigid rules. The same eyepiece can behave very differently in a 400mm refractor and a 2800mm Schmidt-Cassegrain—use the calculator above to translate the range to your telescope.

7mmResolve fine detail

Moon, planets and tight doubles on steady nights.

10mmBring compact targets closer

Planets, lunar features, globulars and planetary nebulae.

15mmBalance detail and context

Moon, globular clusters, galaxies and smaller nebulae.

19mmGeneral deep-sky view

Galaxies, rich fields, lunar framing and open clusters.

23mmOpen the field

Large clusters, broad nebulae and easy target finding.

31mmSweep the Milky Way

Very large targets, maximum family field and navigation.

Start low, then climb. A longer focal length usually makes a target easier to locate. Centre it, focus carefully, then move to a shorter focal length if the atmosphere and object reward more power.

Check the mechanical fit

Barrel first. Balance second.

The number on the eyepiece sets magnification; the barrel diameter decides whether it physically fits. The heavier 2″ models also change the load at the back or side of the telescope.

1.25″ or 2″?

The 7, 10 and 15mm models fit standard 1.25″ holders. The 19, 23 and 31mm models require a 2″ focuser or 2″ diagonal.

32mm

1.25″ barrel

50.8mm

2″ barrel

A 1.25″ eyepiece can normally be used in a 2″ holder with the correct adapter.
A 2″ eyepiece cannot fit a 1.25″-only focuser or diagonal.
Each insert barrel is threaded for filters matching its barrel format.

Plan for the payload.

The family grows substantially from the compact 7mm to the 1.186kg 31mm. On a Dobsonian, small mount or light focuser, that difference can shift balance or demand more tension.

7mm
306g
10mm
329g
15mm
366g
19mm
500g
23mm
800.5g
31mm
1186g

Before letting go: secure the eyepiece, confirm the diagonal and focuser can carry it, and test telescope balance through the full altitude range.

Built for hands-on observing

Glass, grip and control.

The optical idea is ambitious; the handling is deliberately simple. A broad rubber centre grip controls the retractable eyecup, while anodised aluminium bodies and threaded barrels make the range feel at home in a serious observing kit.

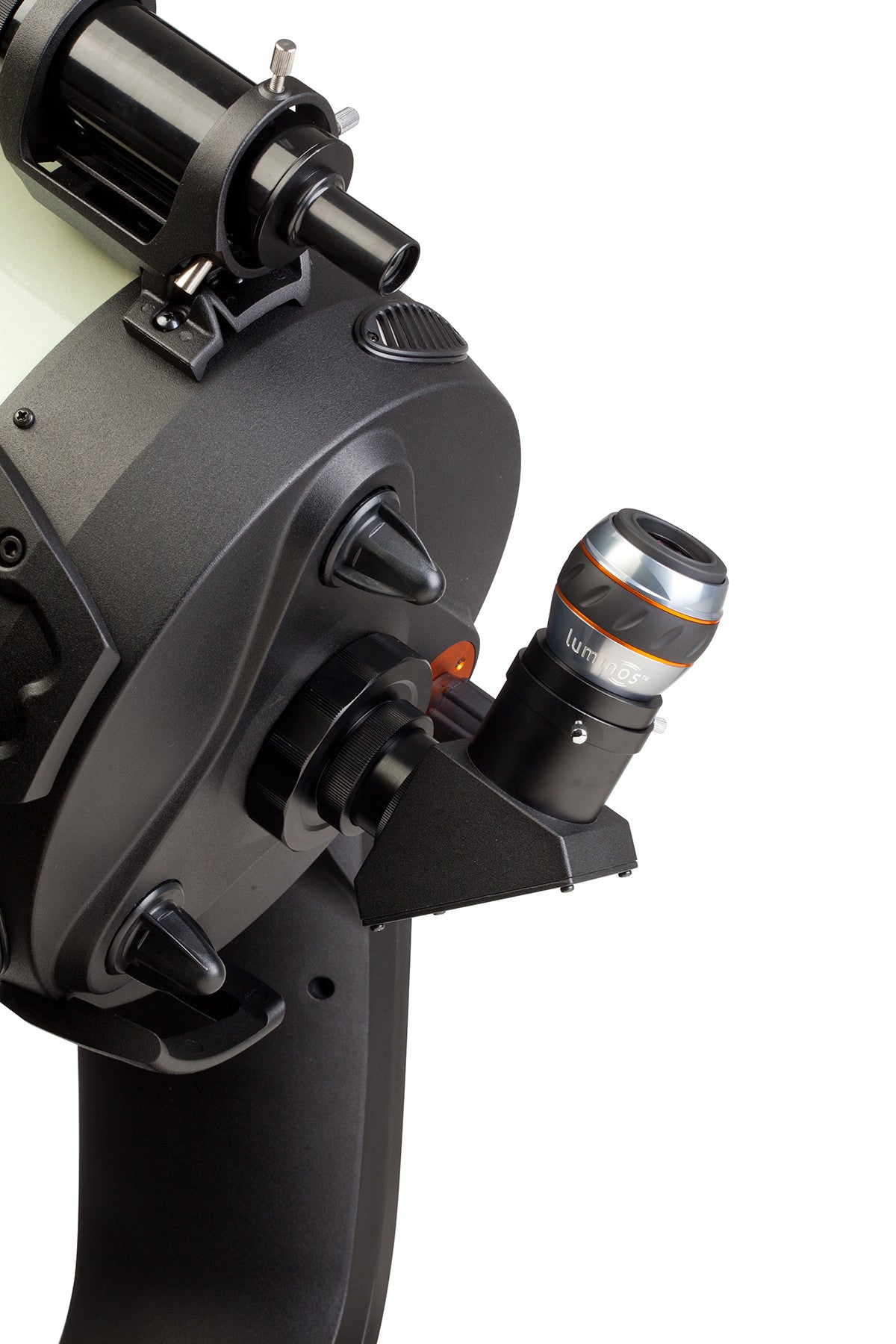

Celestron Luminos 7mm eyepiece installed in a telescope diagonal — 7mm · compact 1.25″ high-power format

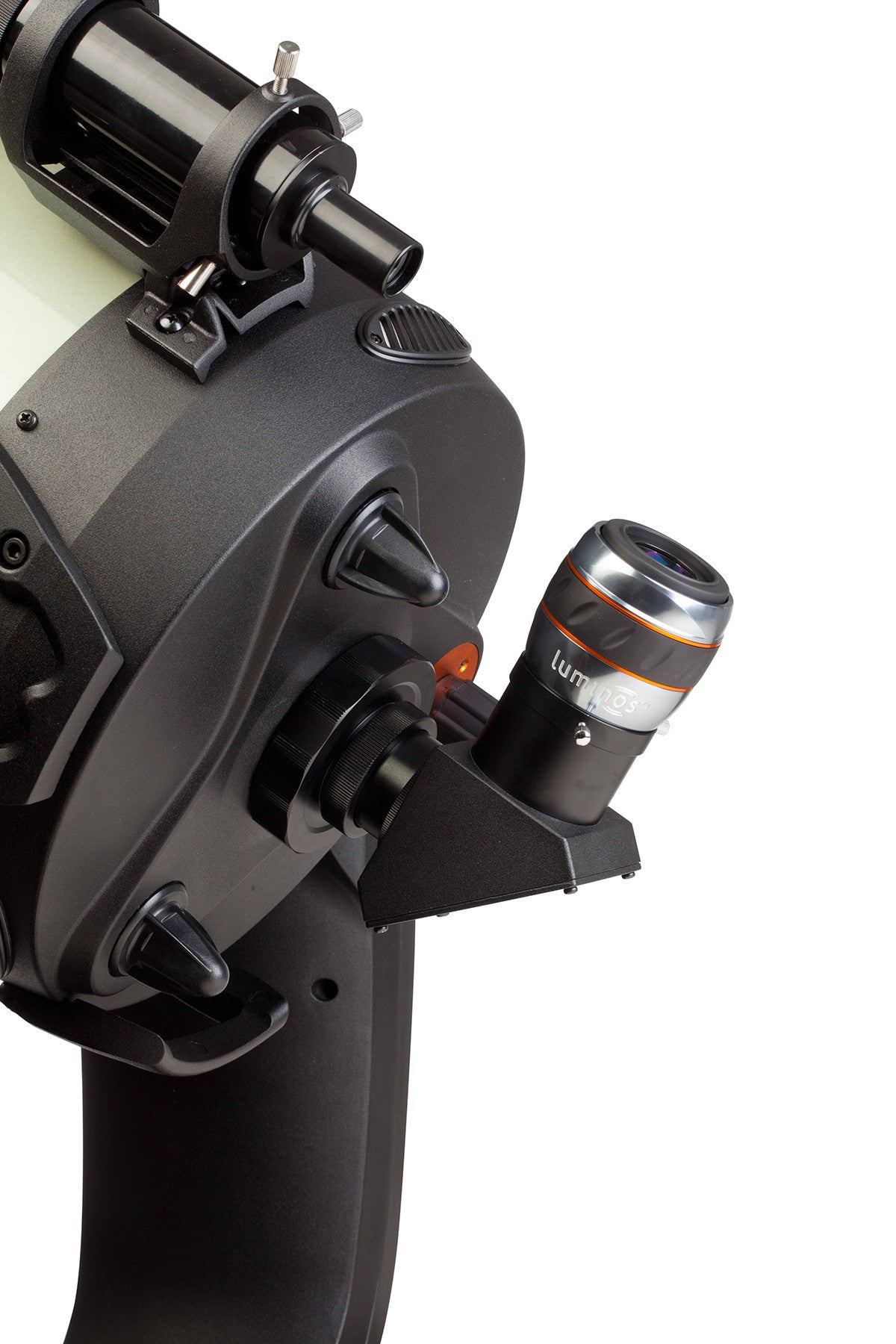

Celestron Luminos 19mm two-inch eyepiece mounted on a telescope — 19mm · the first step into the 2″ half of the family

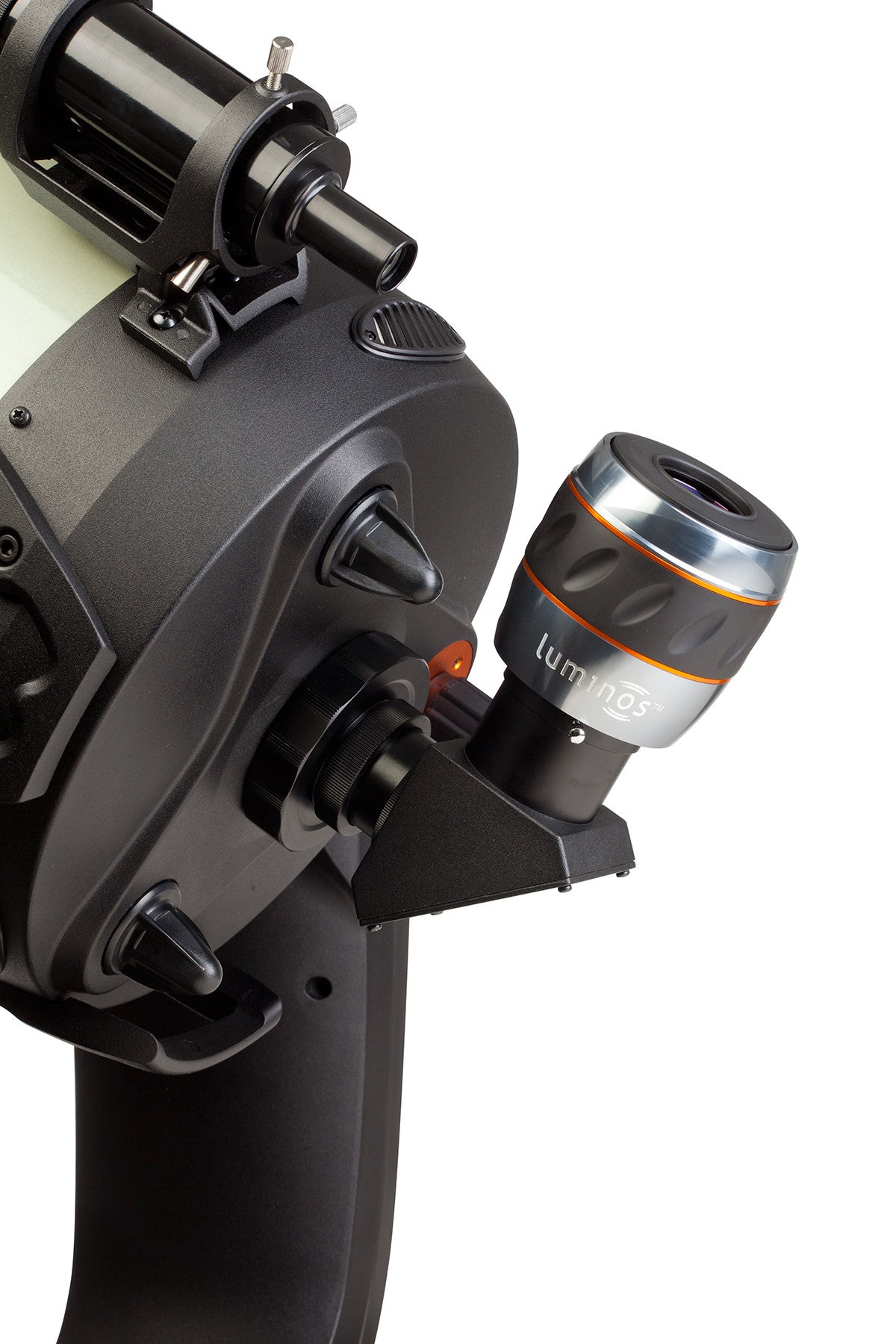

Large Celestron Luminos 31mm eyepiece secured in a two-inch telescope diagonal — 31mm · broadest field and largest payload in the range

Fully multi-coated

Every air-to-glass surface receives multiple coating layers to support light transmission, contrast and clean colour.

Twist-up eyecup

Rotate the broad rubber grip counter-clockwise to raise the eyecup or clockwise to lower it for glasses and personal eye position.

Parfocal family

Swap between Luminos focal lengths with little or no refocusing. A small touch-up can still be normal across telescopes and observers.

Threaded barrels

Add compatible nebula, colour or neutral-density filters directly to the insert barrel; match the filter diameter to the eyepiece.

From case to first light

Four calm steps at the telescope.

Eyepieces are simple to install, but a careful routine protects the barrel, the telescope and the object you just spent time finding.

Start low

Use a longer focal length to locate and centre the target. Check that the eyepiece barrel matches the focuser or diagonal.
Seat and secure

Loosen the holder, insert the chrome barrel fully, then tighten gently until snug. Do not overtighten or mark the barrel.
Focus and set eye height

Focus on the target, then rotate the rubber grip to place the eyecup where the full field is comfortable and stable.
Increase with purpose

Move to a shorter focal length for more detail. If the image becomes soft, dim or restless, step back to lower power.

Care for the optical surfaces

Keep both dust caps on whenever the eyepiece is not in use.
Remove loose dust with a clean blower before touching a lens surface.
Use optical-grade cleaning supplies sparingly; never use household glass cleaner.
Store dry and capped. The Luminos eyepieces are not waterproof.
Allow dew to evaporate in a safe, ventilated place before sealing the eyepiece away.

Every number in one place

Complete Luminos comparison.

Current Celestron specifications for all six individual variants. Dimensions are overall height × width × depth.

All models are ultra-wide-field, fully multi-coated, parfocal, filter-threaded, fitted with a pop-up eye guard, built with aluminium bodies and not waterproof.
Specification	7mm	10mm	15mm	19mm	23mm	31mm
Celestron SKU	93430	93431	93432	93433	93434	93435
Barrel size	1.25″ (32mm)	1.25″ (32mm)	1.25″ (32mm)	2″ (50.8mm)	2″ (50.8mm)	2″ (50.8mm)
Focal length	7mm	10mm	15mm	19mm	23mm	31mm
Apparent field	82°	82°	82°	82°	82°	82°
Field stop	15mm	17mm	26mm	30mm	37mm	47mm
Lens elements	8	7	7	6	6	6
Lens groups	5	5	4	4	4	4
Eye relief	12mm	12mm	17mm	20mm	20mm	27mm
Dimensions	89.5 × 54 × 54mm	91 × 57.5 × 57.5mm	87 × 62 × 62mm	93.5 × 67.5 × 67.5mm	110.5 × 80.5 × 80.5mm	125.5 × 93 × 93mm
Weight	306g	329g	366g	500g	800.5g	1186g
Optical coatings	Fully multi-coated	Fully multi-coated	Fully multi-coated	Fully multi-coated	Fully multi-coated	Fully multi-coated
Parfocal	Yes	Yes	Yes	Yes	Yes	Yes
Filter threads	Yes	Yes	Yes	Yes	Yes	Yes
Retractable eye guard	Yes	Yes	Yes	Yes	Yes	Yes
Waterproof	No	No	No	No	No	No

Swipe or scroll the table sideways to compare every model.

Before you choose

Luminos questions, answered.

Does selecting a variant include all six eyepieces?

No. Each variant is one individual Luminos eyepiece in the selected focal length. The page covers all six so you can compare them accurately before choosing.

Which Luminos focal length should I buy first?

Start by entering your telescope details in the calculator. Look for a useful gap in your existing eyepieces rather than duplicating a similar magnification. A lower-power option is often the most forgiving first view; shorter focal lengths are more dependent on aperture, collimation and atmospheric steadiness.

Will the 19, 23 or 31mm fit my 1.25″ telescope?

Not in a 1.25″-only holder. Those three models have 2″ barrels and require a compatible 2″ focuser or 2″ diagonal. A 1.25″-to-2″ adapter enlarges the holder for smaller eyepieces; it cannot make a 2″ eyepiece fit a smaller opening.

What does parfocal mean in real use?

The six Luminos eyepieces are designed around a common focus position, so switching within the family usually needs little or no focuser movement. Small differences in eyesight, telescope accessories and seating can still call for a fine adjustment.

Are Luminos eyepieces suitable for people who wear glasses?

Lower the twist-up eyecup to bring glasses closer to the eye lens. The published eye relief is 12mm on the 7 and 10mm, 17mm on the 15mm, 20mm on the 19 and 23mm, and 27mm on the 31mm. Whether you can see the complete 82° field depends on your frames, facial geometry and required eye position.

Can I use filters or a Barlow lens?

Yes, when the accessory matches the barrel format and mechanical load. Each Luminos barrel is filter-threaded. A compatible Barlow increases magnification, so calculate the resulting power before use—especially with the 7 and 10mm models.

Is the 31mm automatically the brightest or best deep-sky choice?

No single eyepiece is best for every telescope. The 31mm gives the broadest Luminos true field, but in a fast telescope it may produce an exit pupil larger than your eye can use. Sky brightness, focal ratio, obstruction, balance and target size all matter. The calculator helps reveal that trade-off.

Are these eyepieces waterproof?

No. Celestron lists every Luminos eyepiece as not waterproof. Protect them from rain and spray, dry dew before storage, and keep the caps fitted when they are out of the telescope.

Official help and specifications

Keep the references close.

Setup guidance, the manufacturer’s full eyepiece chart and local help from Jacobs Digital.

Luminos quick setup guide Official Celestron PDF covering installation, eyecup adjustment and the magnification formula. Official eyepiece specification chart Manufacturer comparison data for focal length, elements, eye relief, field stop, size and weight. Ask Jacobs Digital Unsure about barrel fit, balance or the best focal length for your telescope? Ask the Auckland team.

Choose the view your telescope is missing.

Choose the Luminos focal length that best complements your telescope. If you are between two sizes, compare magnification, true field, exit pupil and barrel format—not just the millimetre number.

Back to product options

View full details

Choose your delivery date below. Please allow up to 4 business days prior to selected date to ensure timely arrival.

FAQs

Buy Kiwi Buyer Guarantee

To ensure you have a great buying experience, we also offer a Buyer Guarantee, which is intended to align with your rights under the Consumer Guarantees Act 1993.

You will generally be covered by our Buyer Guarantee when products you have purchased on Buy Kiwi from a Seller are faulty or defective, are not the same as advertised, are fake or are incorrect or have not arrived.

Learn More

Our Buy Kiwi Buyer Guarantee is designed to protect our customers shopping on Buy Kiwi. They can shop with confidence, knowing they are protected.

1. When does our Buyer Guarantee apply?

Buy Kiwi is a marketplace that connects consumers with New Zealand owned businesses (Sellers).

Buy Kiwi holds the highest regard for the customer experience provided by the Sellers to consumers.

In the event of any dissatisfaction with a purchase on the Buy Kiwi marketplace, the Seller should be first contacted and reasons outlined for the dissatisfaction be provided to the Seller.

Under the Consumer Guarantees Act 1993, you have certain rights and guarantees in relation to products you purchase. These rights and guarantees are actionable against suppliers (i.e. our Sellers) and/or the product manufacturers.

However, to ensure you have a great buying experience, we also offer a Buyer Guarantee, which is intended to align with your rights under the Consumer Guarantees Act 1993.

You will generally be covered by our Buyer Guarantee when products you have purchased on Buy Kiwi from a Seller are faulty or defective, are not the same as advertised, are fake or are incorrect or have not arrived.

You accept that our Buyer Guarantee is not a form of insurance or product warranty.

Please note, our Buyer Guarantee does not apply to the following situations:
1. If the Seller has not been notified first of the dissatisfaction.
2. Buyer’s Remorse: if you decide that you do not like your product or if you have changed your mind.
3. Buyers Mistake: if you have ordered the wrong item (e.g. you wanted a Large T-shirt, and accidently ordered a Small).
4. Fraudulent Claims: if we deem you to have acted fraudulently (e.g. if we have evidence from a courier that you received your product, we will not accept a complaint that your product has not been delivered).
5. Items shipped to a "vacant” address: if you have addressed your order to be delivered to a vacant, empty or unsafe address.
2. My product is faulty or defective

The following process will apply where you believe that:

Your product is faulty or defective (e.g. it does not work, is unsafe, is not fit for purpose, or is not acceptable in appearance and finish).

The product you have received is different to what you have ordered: e.g. you ordered a small size but have received a large.

The number of products you have received is incorrect: e.g. you ordered 3 shirts but only received 2.

The product you have received is a fake.

The product you have received looks different from how it is advertised on Buy Kiwi (please note however that due to photographic and screen limitations, some actual products may differ to a small extent in visual appearance from the way they appear on the Platform).

The product you have received has been damaged during delivery or is empty: e.g. you have ordered glassware but the product was broken when you took it out of the packaging, or, the package delivered was empty.

The product is missing pieces or parts (e.g. you order a remote-control car and do not receive the remote control).
1. You must lodge a complaint with Buy Kiwi by emailing support@buykiwi.co.nz within a ‘reasonable time’ of receiving your product.
2. Within 5 business days of receiving your complaint, Buy Kiwi will liaise with the Seller and will either (i) determine whether or not you are eligible for our Buyer Guarantee; and/or (ii) request that you send your product to the Seller’s return location so that either we or the Seller can complete an investigation.
3. Where you are required to send back your product, you may take it to a pick up or drop off location (as notified to you at the time you lodge the complaint) (in which case it will be shipped to the Seller’s return location free of charge), or, you may arrange your own shipping (which may not be refunded). We recommend that you keep evidence that you have sent your product back to the Seller’s return location. If you are sending back a product that is damaged, please also send the parcel or cover in which your product came as it may be used to make a claim against the relevant courier company.
4. Where we have requested that you send your product back to the Seller’s return location, Buy Kiwi will make a decision as to whether or not you are eligible for our Buyer Guarantee, within 5 business days of receiving the product.
5. If, following consultation with the Seller, Buy Kiwi determines that you are eligible for our Buyer Guarantee, in the first instance, the Seller will either repair your product, or issue you with a replacement or a refund.
3. My product has not arrived

This section applies where your product has not arrived, or where your product did not arrive within the timeframe specified for your order (allowing for reasonable delay).

Please note that generally, you are responsible for accepting a product when it is delivered to your delivery address. You will not be eligible for our Buyer Guarantee where (i) you refuse delivery, or (ii) your product has been tracked and signed as delivered.

If you believe that your product has not arrived (or if your product did not arrive within the timeframe specified for your order, allowing for reasonable delay), you may be eligible for our Buyer Guarantee. The following process will apply:
1. If the Seller has been notified first of the non-delivery.
2. You must lodge a complaint with Buy Kiwi support@buykiwi.co.nz with a ‘reasonable time’ following the period within which delivery should have been made.
3. Within 5 business days of receiving your complaint, Buy Kiwi will determine whether or not you are eligible for our Buyer Guarantee.
4. If, following consultation with the Seller, Buy Kiwi determines that you are eligible for our Buyer Guarantee, in the first instance, the Seller will issue you with a replacement product, or a refund.
4. Issue of refunds

If the Seller notifies you that you will be issued with a refund, you will be refunded within 5 business days of such notice.If you do not receive your refund within this time, please let us know and we will process your refund on the Seller’s behalf.

You will be refunded to the payment method that you used to pay for your products.

If we cannot make payment back to the payment method you used to make your purchase, we will need to make alternative arrangements with you. In the first instance you will need to contact one of our customer experience team to let them help with the refund.

5. Using other methods to claim

You cannot use multiple methods to get a refund or replacement of your products. After selecting a process (e.g. through our Buyer Guarantee, or requesting a chargeback from your payment provider) you may only use that process to resolve your complaint.

If you request a chargeback from your payment provider or file any other dispute, any requests already opened through Buy Kiwi for the same product will be cancelled.

The warranties that we offer and provide pursuant to our Terms and Conditions are in addition to the consumer warranties and guarantees under the New Zealand Consumer Law.

We will always strive to ensure you are happy with your purchase & our Seller’s service. We strive to operate within our legal obligations & our above policies.

Shipping and Returns

What are the shipping options if I am a local (located in New Zealand) shopper?

Local shipping is provided by all of our sellers, and the shipping time and cost is based on each individual seller's policy.

To see specific shipping times, add the product you are interested in to your cart and enter your delivery address.

What are the shipping options if I am an international (not located in New Zealand) shopper?

International shipping is provided by many of our sellers, and the shipping options are based on the seller's policy.

Is there a return policy if I purchase products from Buy Kiwi?

On the Buy Kiwi platform, you are covered by the Buy Kiwi Buyer Guarantee (see above). When buying products from Buy Kiwi sellers, to return goods you must contact the business who provided the products. The return policy must meet the individual business policy and the Consumer Guarantees...

New Zealand Owned

It is an eligibility requirement for sellers to be at least 80% NZ owned* to be listed on Buy Kiwi.

*Kiwi Owned Business is defined as at least 80% New Zealand owned.

Item added to your cart

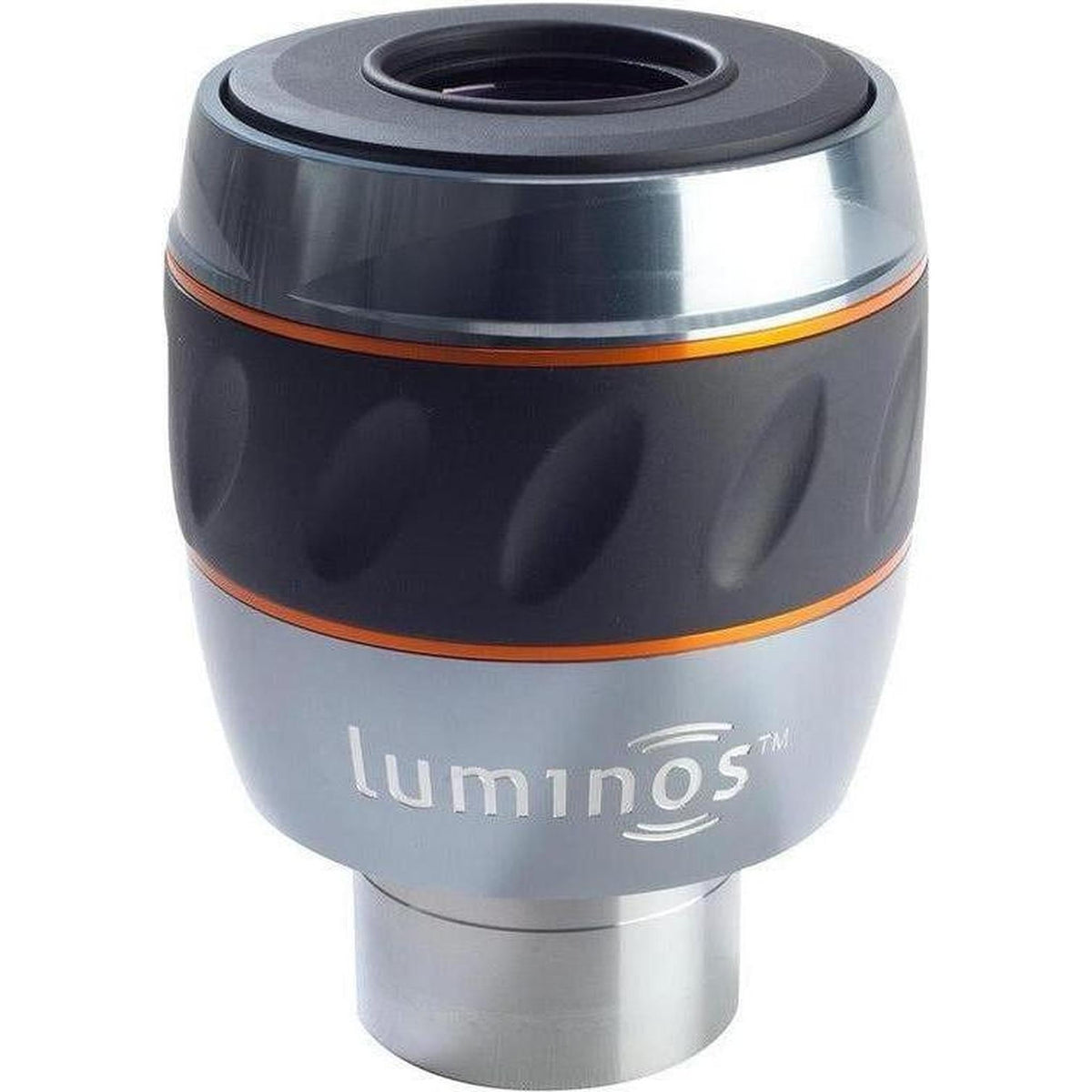

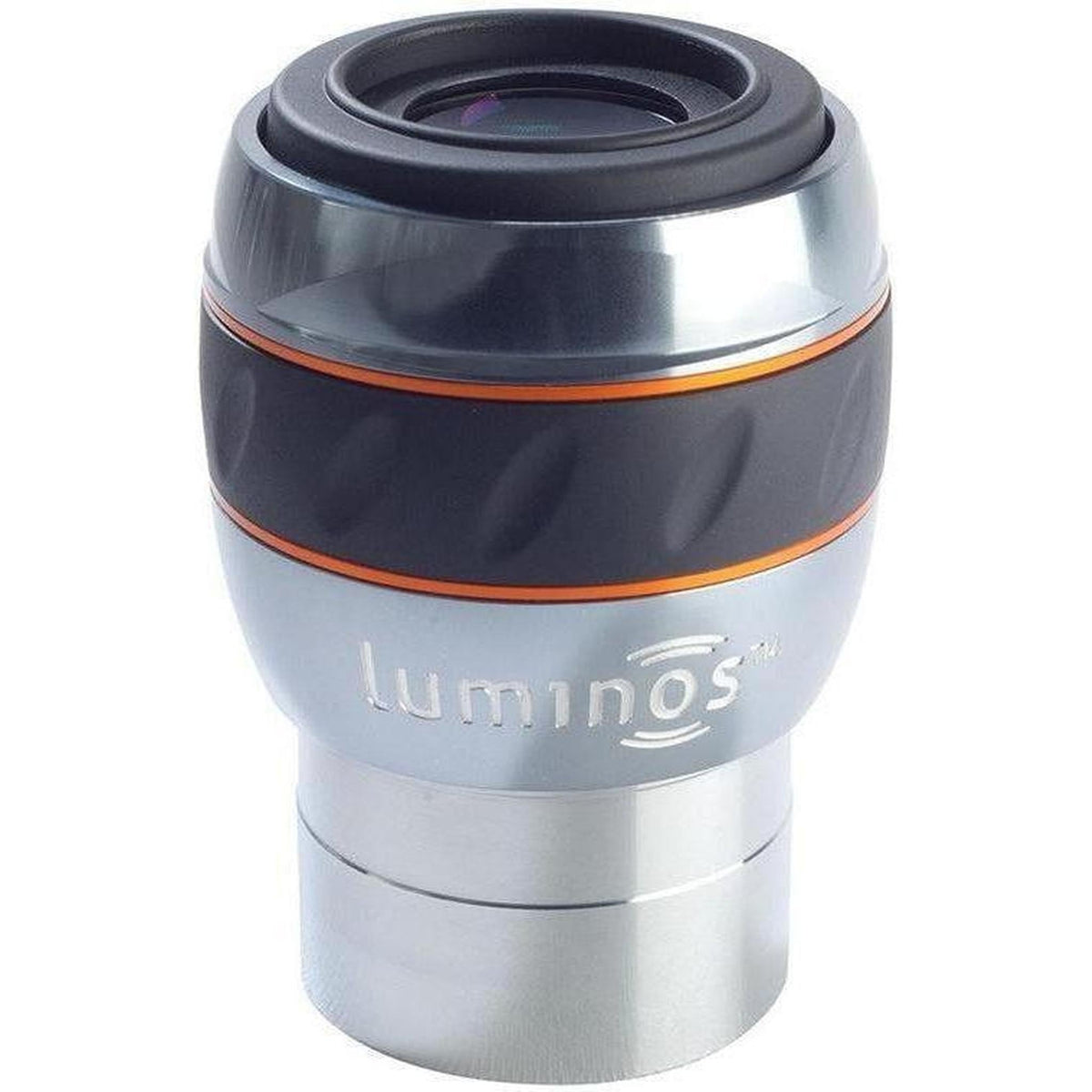

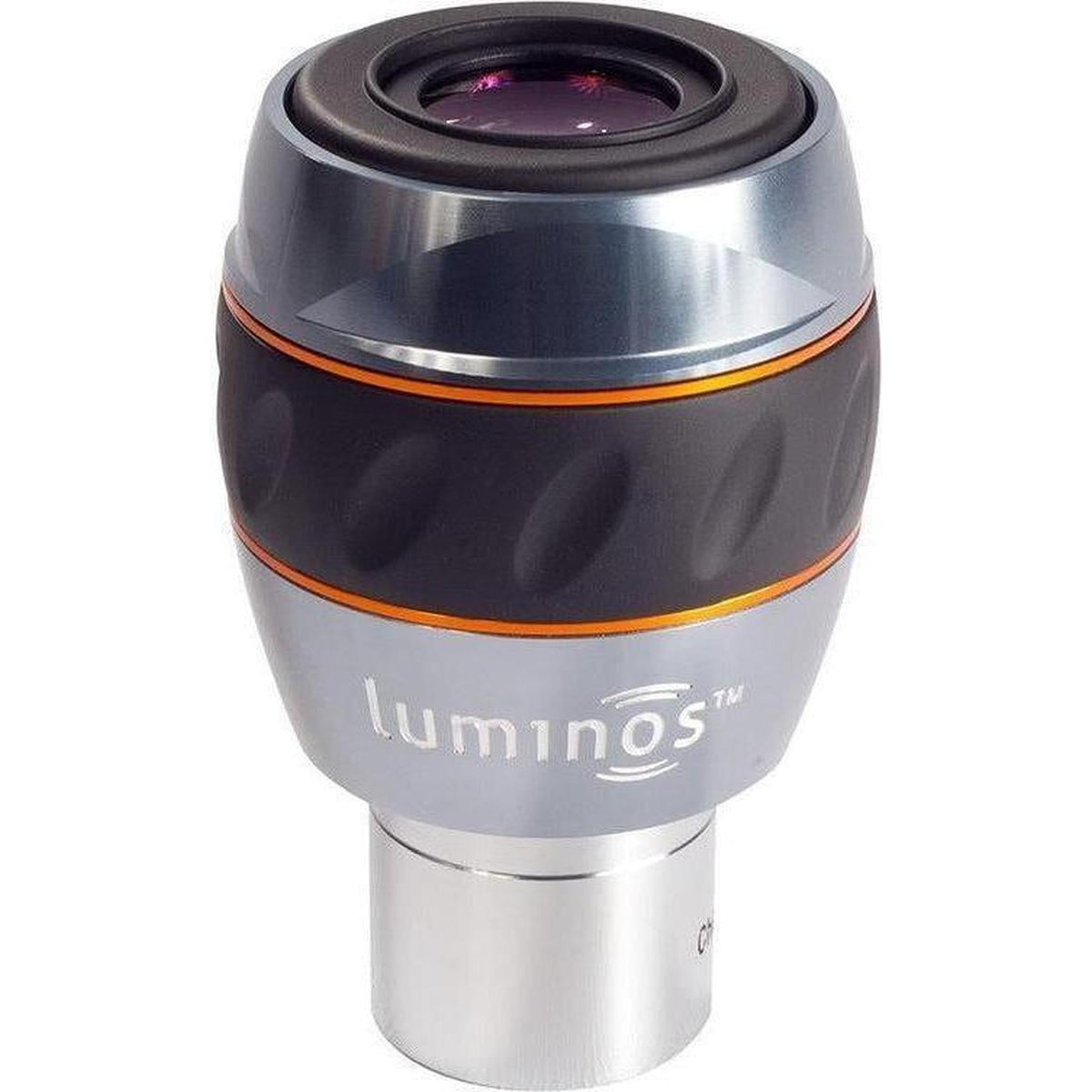

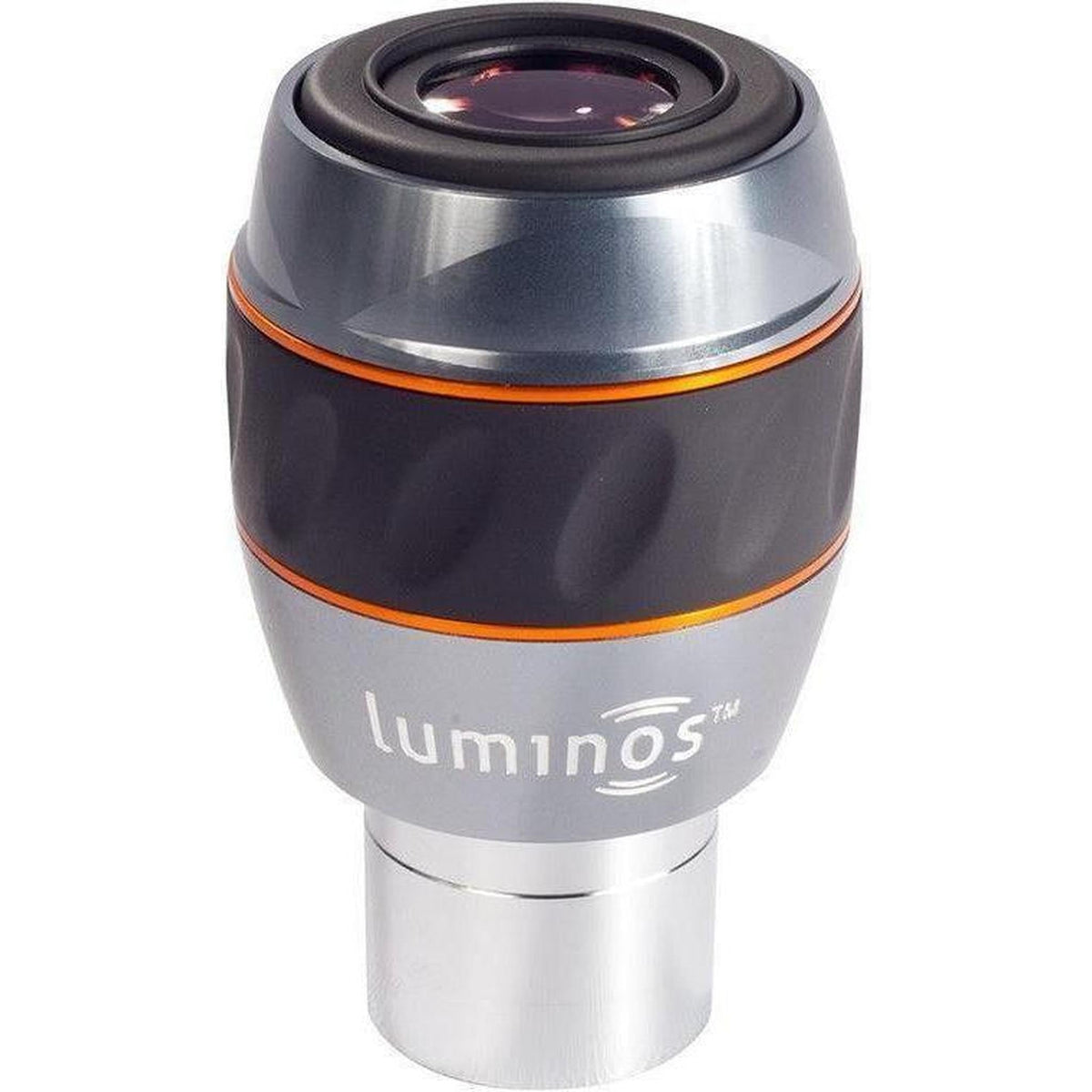

Celestron Luminos Eyepieces - All Sizes

A wider way into the night.

See the scene, not the edge.

Six focal lengths. Six different jobs.

7mm

10mm

15mm

19mm

23mm

31mm

Match the focal length to the night.
