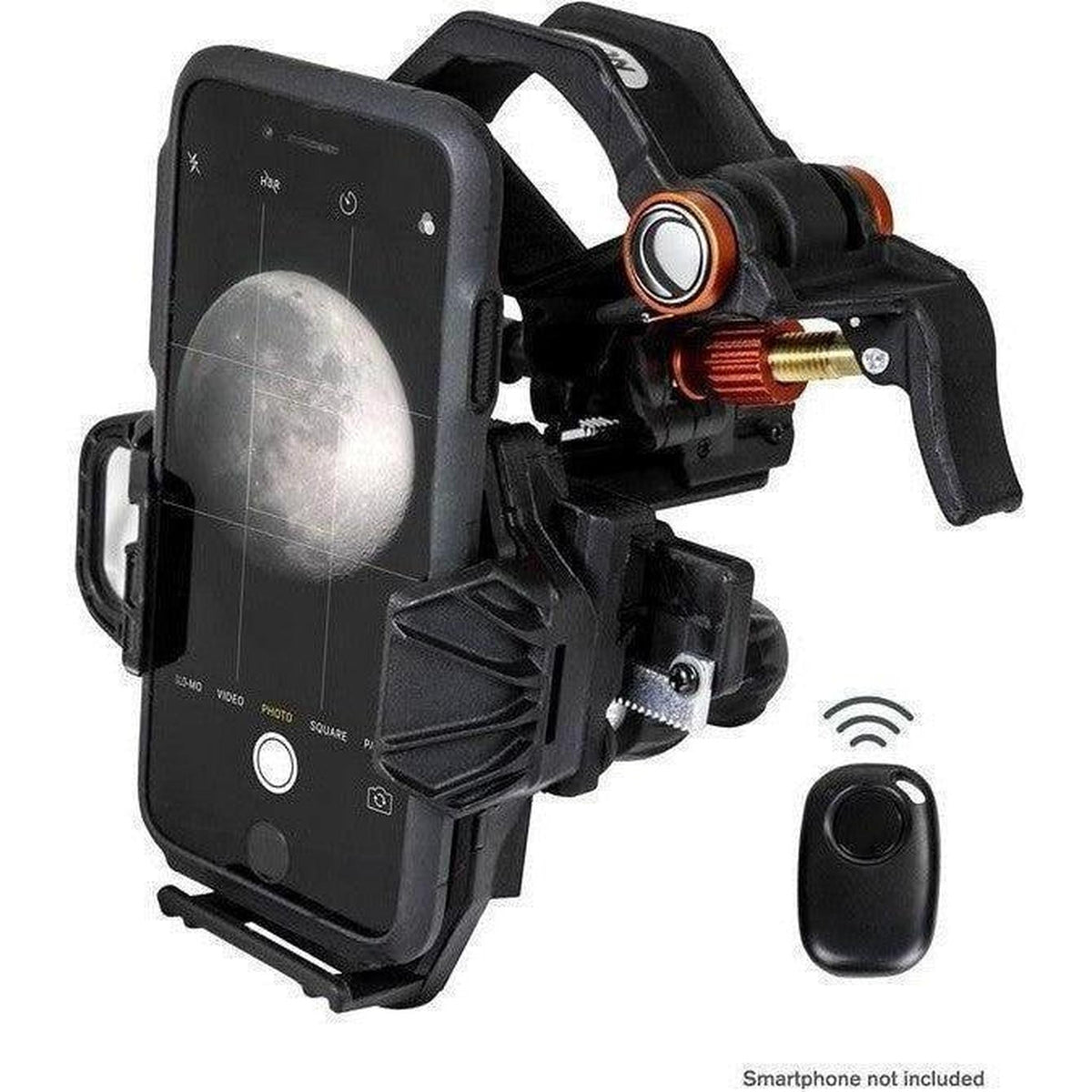

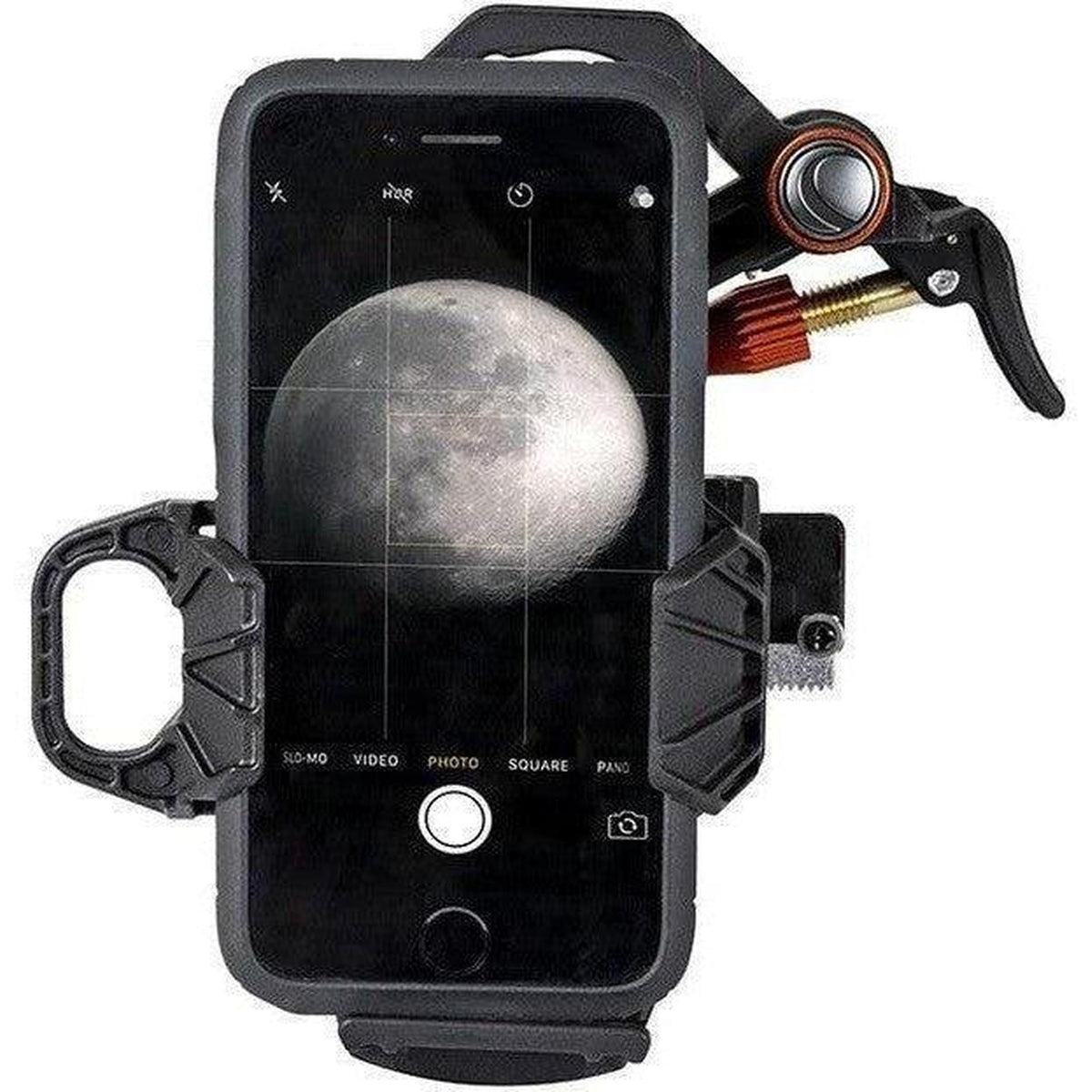

Celestron NexYZ DX 3-Axis Universal Smartphone Adapter with Bluetooth Remote

SKU: 81057

Regular price $134.99 NZD
Regular price Sale price $134.99 NZD
Taxes included. Shipping calculated at checkout.
  • Fast NZ-Wide Shipping
  • In Stock In New Zealand
Quantity

In stock

The NexYZ DX Smartphone Adapter is a great first step into the world of astroimaging or digiscoping. You get everything you need to capture sharp, detailed images and video: the customer favorite NexYZ smartphone adapter and a Bluetooth shutter release remote.

Patented NexYZ Smartphone Adapter

The NexYZ fits any eyepiece from 35mm to 60mm in diameter, including telescopes equipped with 1.25” or 2” eyepieces, spotting scopes, monoculars, and binoculars. NexYZ also attaches to microscopes with the addition of an included adapter ring, which takes the usable diameter down to 25mm, the size of a standard microscope eyepiece.

The NexYZ DX Kit accommodates a wide range of smartphones including the larger “phablets” like the iPhone 8 Plus and latest Samsung Galaxy devices. The phone platform is fully adjustable and can fit any device—usually with the case still on. The secure platform stands up to the weight of these heavier devices with ease, thanks to NexYZ’s strong metal spring and threaded twist lock. Should you need to tighten the tension on each axis for a customized secure connection, click the Support & Downloads tab to read our NexYZ Tension Adjustment Guide.

Bluetooth Shutter Release Remote

To capture the best image, this kit also comes complete with a Bluetooth shutter release remote, which allows you to trigger the camera’s shutter on any Android or iOS smartphone without touching the device’s screen or buttons. This eliminates blurriness in your images caused by the phone or telescope shaking due to pressure from pressing the button manually.  Pairing your Bluetooth remote to your smartphone for the first time takes only seconds. Detailed instructions are in our quick setup guide.

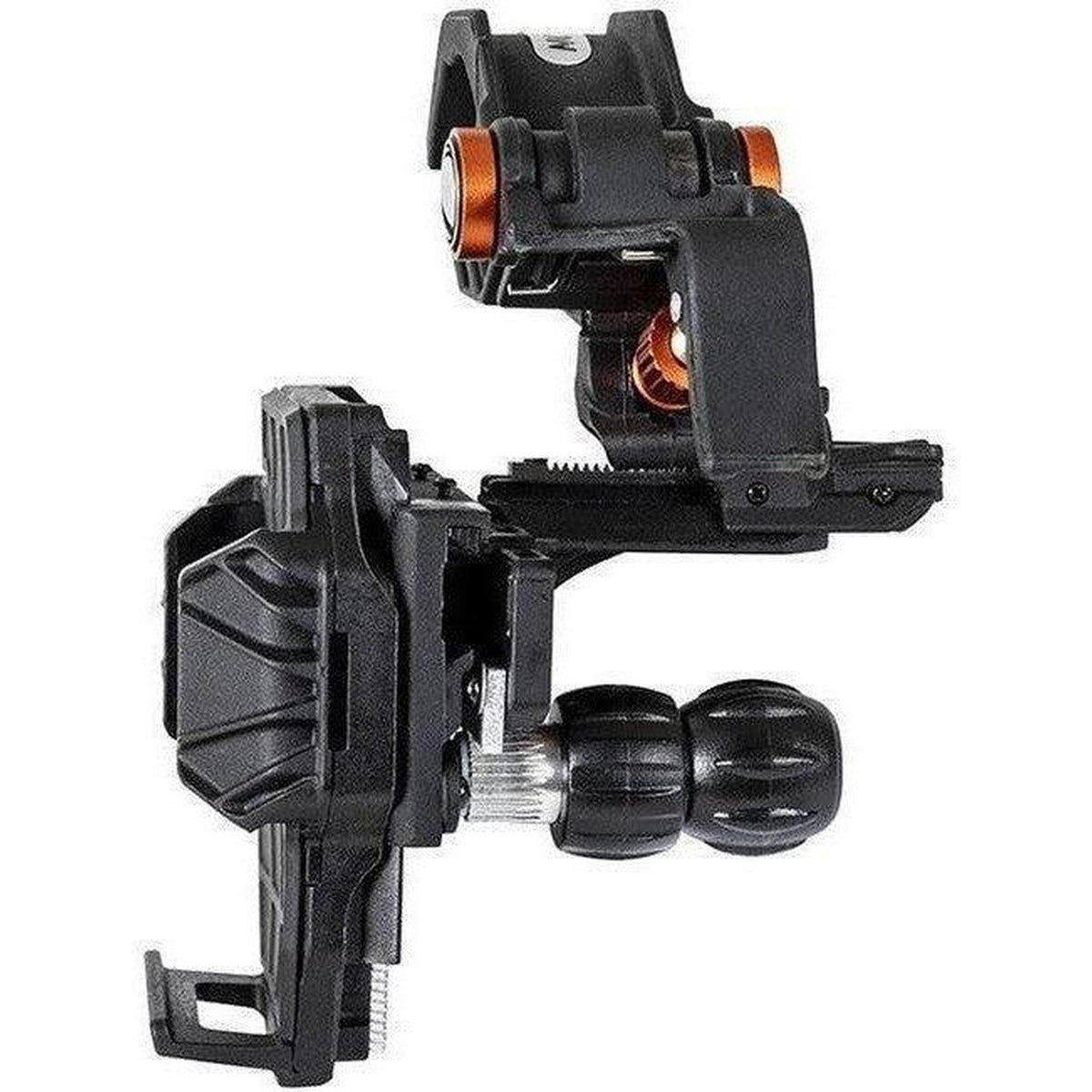

Easy as X-Y-Z

What makes patented NexYZ different from other smartphone adapters? The three-axis adjustment. Most adapters rely on you placing your phone perfectly on the platform and only offer limited adjustment in two axes. But NexYZ gives you the power to place your phone on the platform, center it over the eyepiece with the X and Y knobs, and then move up or down over the eyepiece until you have the entire field of view in your shot.

And even though this adjustment is ultra-precise, it’s still quicker and easier than with other adapters. From start to finish, the process only takes about 30 seconds, including the time it takes to insert the phone into NexYZ, attach NexYZ to an eyepiece, start the camera app, and center the camera over the eyepiece using the knobs.

Switching phones, eyepieces, or optical instruments, requires only slight adjustments to re-center the camera over the new eyepiece. If multiple people want to capture a shot through your optic, NexYZ’s simple spring-loaded clamps make it easy to remove one device and replace it with another in seconds. NexYZ is the ideal solution for star parties and group bird walks where everyone wants their own shot of the action.

You can also switch your image from portrait to landscape simply by turning the padded eyepiece clamp and readjusting the X-, Y-, and Z-axis to realign your phone with the eyepiece.

NOTE: NexYZ is compatible telescopes, spotting scopes, binoculars, monoculars, and microscopes. It does not fit riflescopes. NexYZ works with most phone cases, but if you have an especially large phone case with built-in batteries or a folio-style case, you will need to remove it.

Compatible Optics: Telescopes, Binoculars, Spotting Scopes, Monoculars and Microscopes
Eyepiece Clamp Style: Spring Loaded w/ lock down knob
Eyepiece Clamp Range: 35mm - 60mm (1.37" - 2.36")
Phone Clamp Style: Easy load with internal spring
Phone Clamp Range: 65mm - 90mm (2.55" - 3.54")
Fine Adjustment Style: X,Y,Z Motion- Controlled by knobs with rack and pinion system
Materials: Cast Metal/ Injection molded Fiber reinforced Plastic

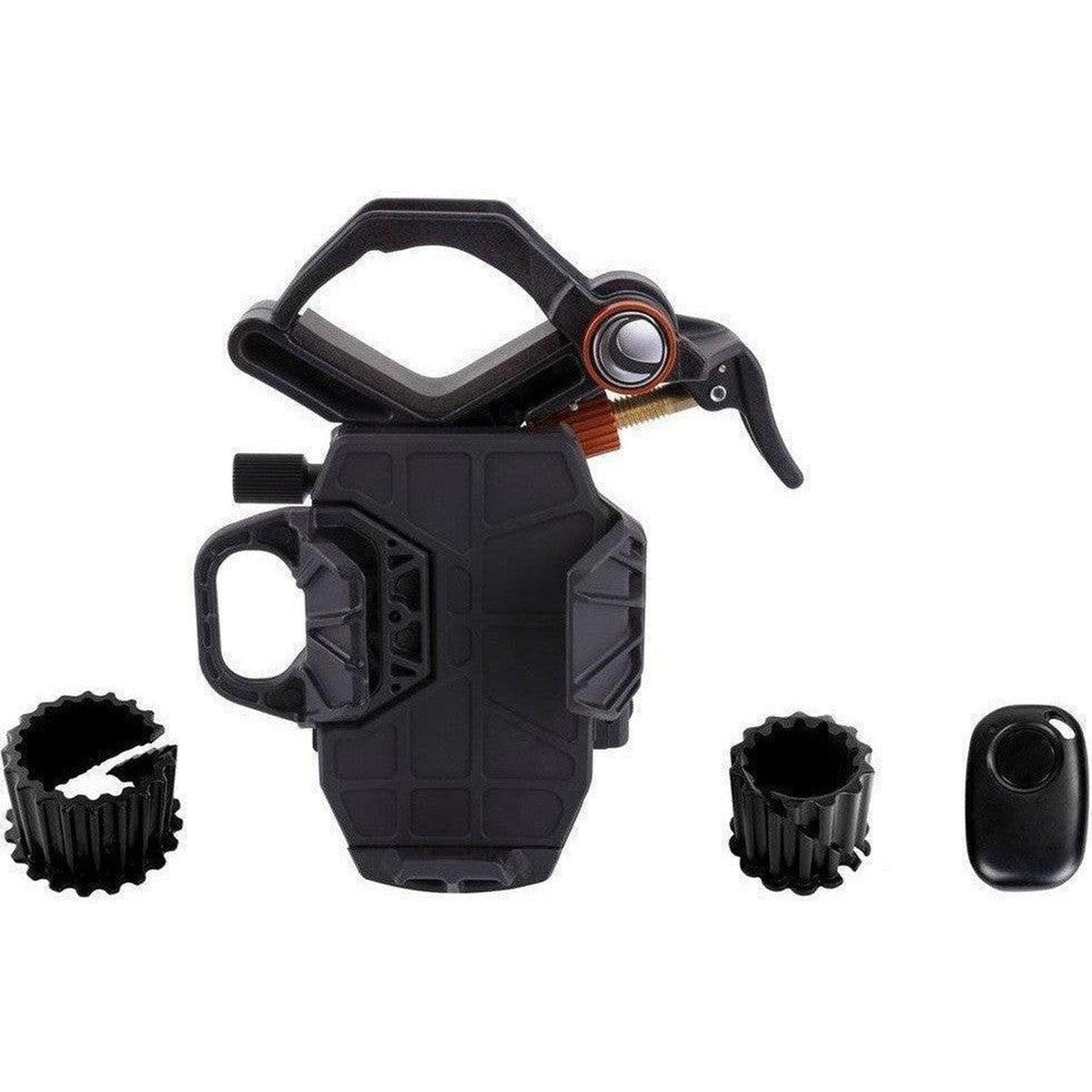

Accessories: 2x Adapters for microscope eyepieces
Bluetooth shutter release remote
CR-2032 battery
Dimensions (open): TBD
Dimensions (Closed): 165.1mm x 139.7mm x 107.95mm (6.50" x 5.50" x 4.25")
Weight: 10 oz ( 283 g)
Solar Warning
  • Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
  • Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
  • Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
